TS55-R-P
产品规格
Rating:50mA, DC 12V
Contact Resistance:100mΩ Max
Insulation Resistance:DC 500V 1M±5s 100 Mw
Dielectric Strength: AC 250V 1M±5s
Operating Force(OF):160±50gf
Life:1,000,000 CYCLES
Operating Temperature Range:-40°C - +85°C
Storage Temperature Range: -40°C - +85°C
应用领域
Audio / Visual 音响/视听设备
Computer Peripherals 电脑外设
Consumer Electronics 消费类电子
Instrumentation 仪器仪表
Telecommunication 电信，通信设备
Medical Equipmen 医疗设备

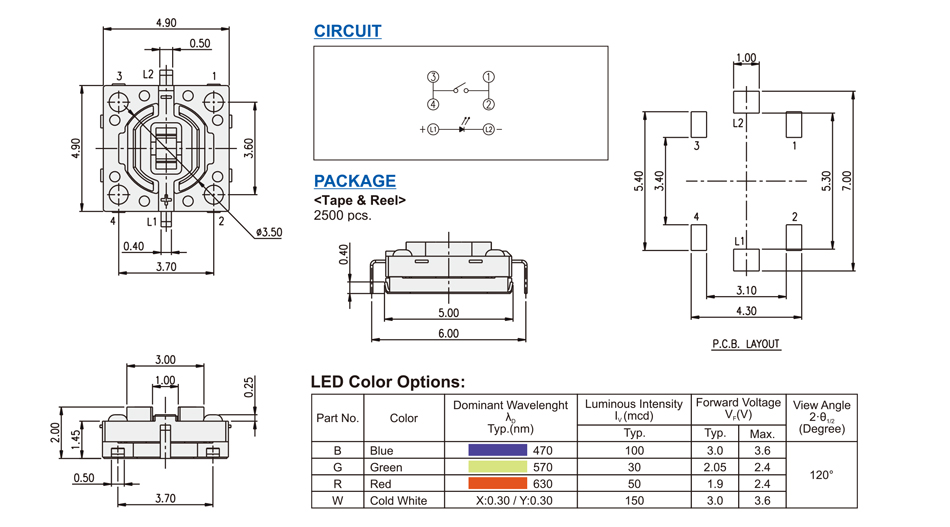

产品图纸

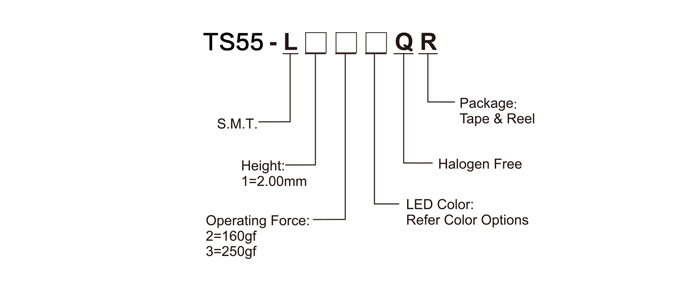

产品编码图
