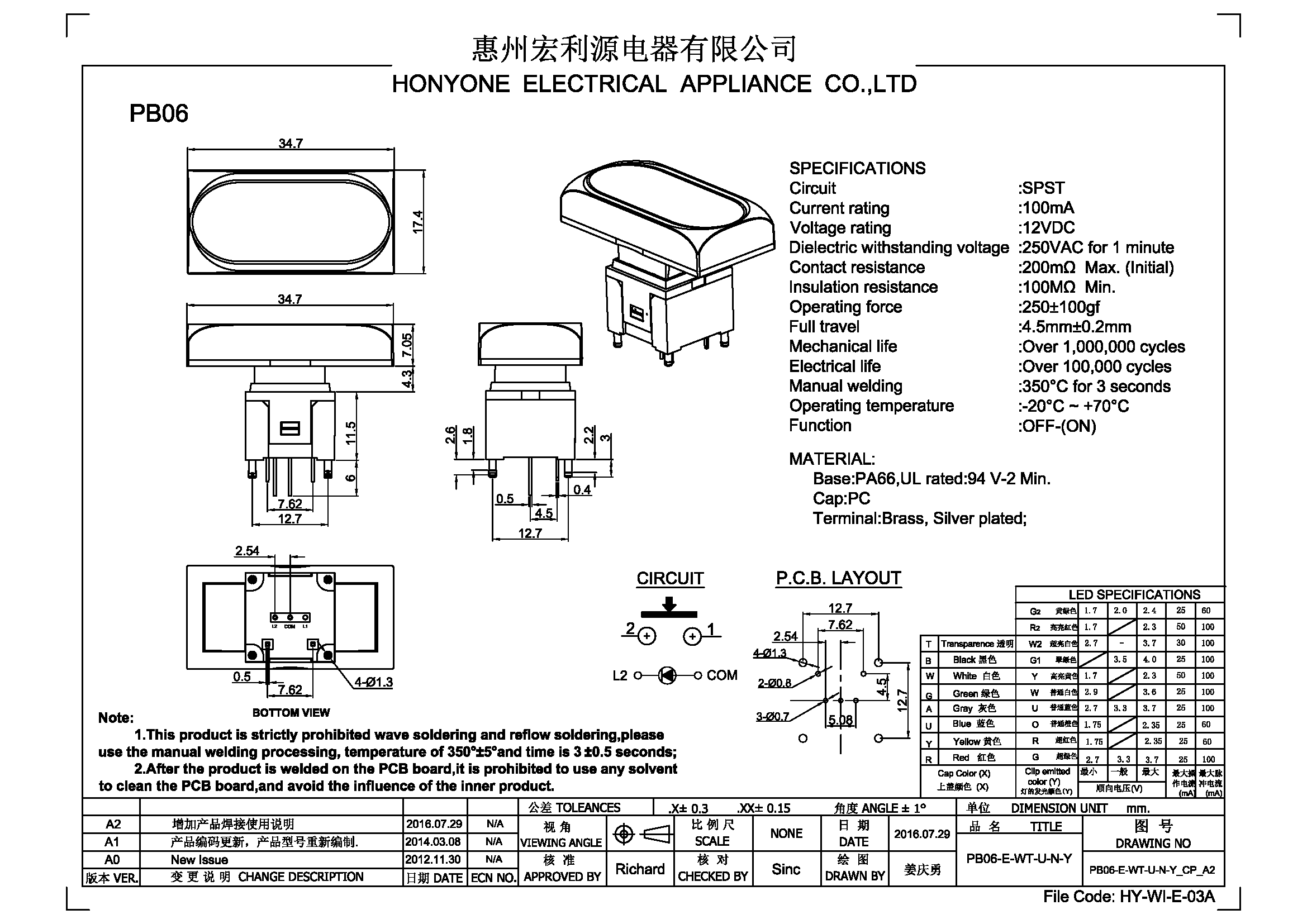

Circuit :SPST Current rating :100mA Voltage rating :12VDC Dielectric withstanding voltage :250VAC for 1 minute (between contacts)(between contacts & case) Contact resistance :200mΩ Max.( Initial) lnsulation resistance :100MΩ Min. Operating force :250±100gf Full travel :4.5mm±0.2mm Mechanical life :over 2,000,oo0 cycles Electrical life :Over 1,000,0o0 cycles Manual welding :350°C for 3 seconds Operating temperature :-20°C~+70°C Function :OFF-(ON)
