翘板开关，船型开关，宏利源，弘力源，HONYONE

WR-5-210-P5L-BR

产品规格

Rating: 12A 125V AC ;
10A 250V AC(ENEC CQC) ;
Contact Resistance: 20mΩ Max. ;
Insulation Resistance:DC 500V 100MΩ Min. ;
Dielectric Strength:AC 1500V 1 minute
Operating Force:450±200gf
Mechanical Life:50,000 cycles
Load Life:10,000 cycles
Operating Temperature: -20°C~+85"C
Protection type depending on mounting: IP65

应用领域

Computer Peripherals 电脑外设

Telecommunications network 电信网络

TV Set-top box 电视机顶盒

Lamp Lighting 灯具照明

Consumer Electronics 消费类电子

Household appliances 家用电器

Car Rail Transportation 汽车轨道交通

Electronic toys 电子玩具

Power Tools Series 电动工具类

Industrial automation工业自动化

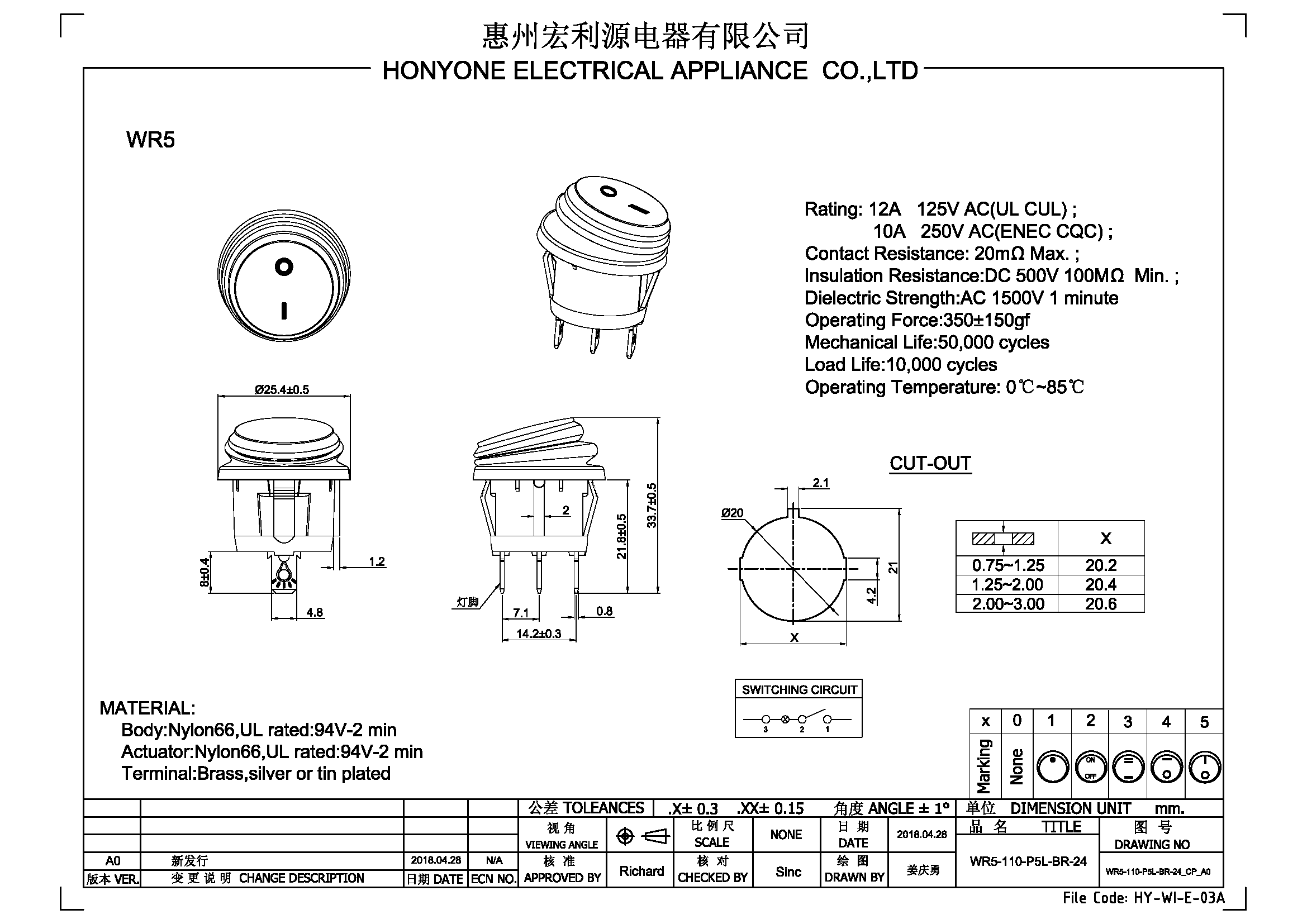

产品图纸

产品编码图

产品图纸PDF文件下载
