RS8211
Product Specification
Rotary switch/Push button switch
Rating :100mA, 30VDC
Contact Resistance :
Initial Rotary : 200mOhm max.Initial Push button : 50mOhm max.
Push button Function : momentary
Total-Travel : 1.8±0.3mm
Storage condition : -40°C ~ +85°C ,60% RH max.
Operation condition : -40°C ~ +85°
Application

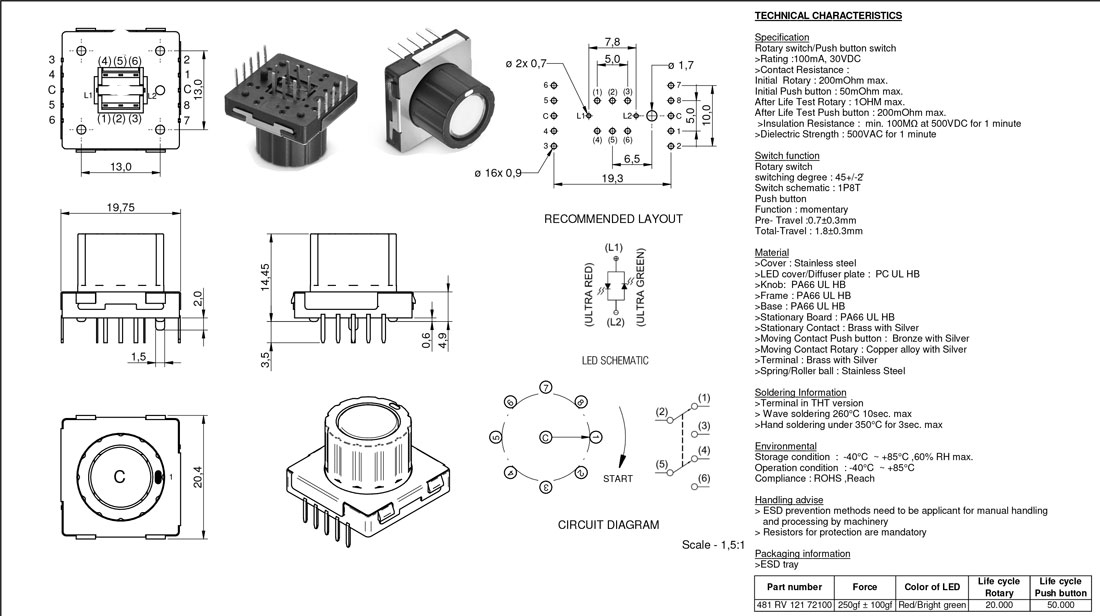

Drawing
Order Coding Diagram
