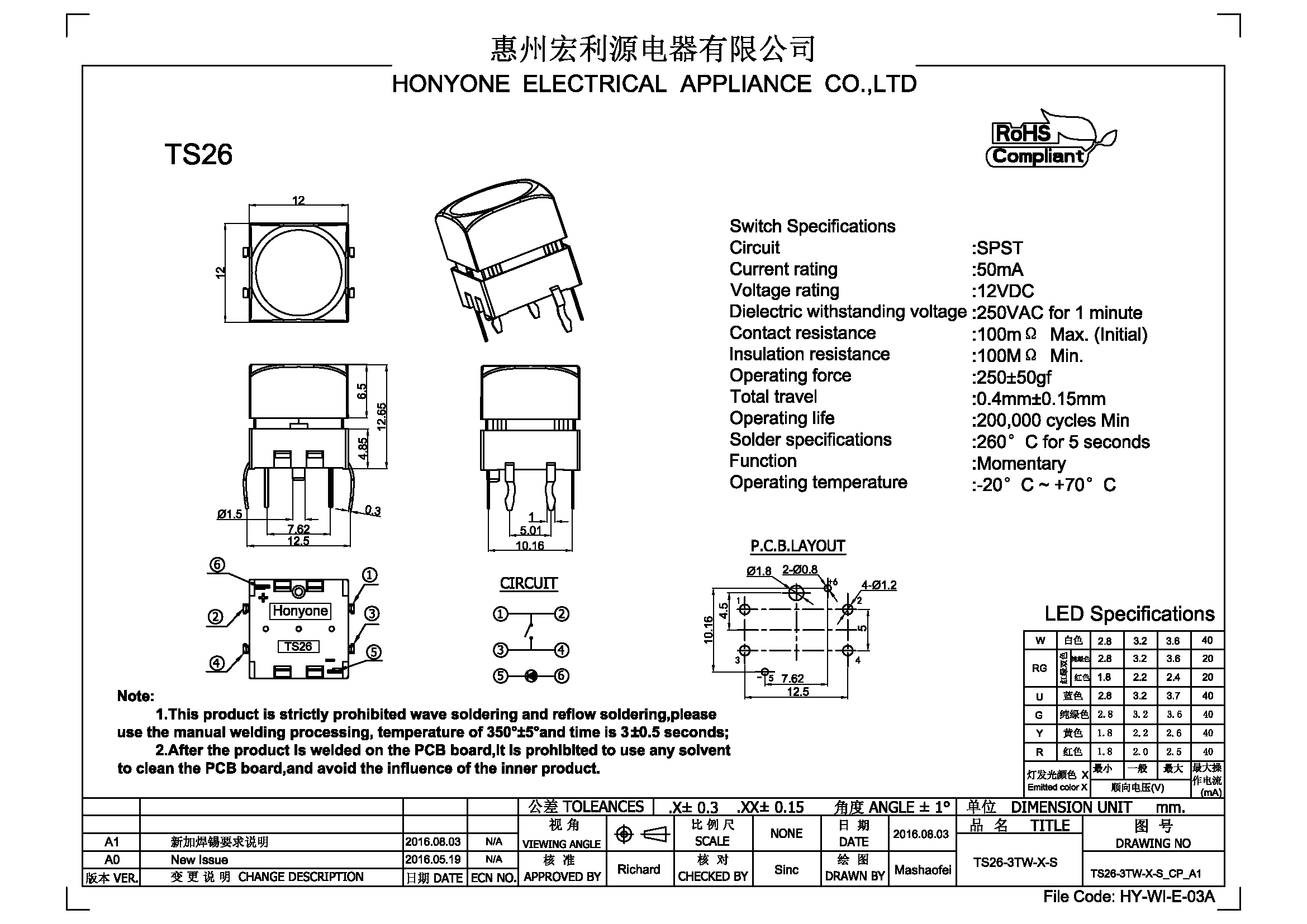

Circuit :SPST 1P1T with LED Current Rating :50mA Voltage Rating :12VDC Dielectric withstanding voltage :250VAC for 1 minute Contact Resistance :100mΩ Max(intial ) Insulation Resistance :100MΩ Min Operating Force :250±50gf Total Travel :0.4±0.1 5mm Opearating life :200,000 Cycles Min Soldear Specifications :260°C for 3 Seconds Function :Momentary Openrating Temperature :-20°C~+70°C
