PB25-21Z-Z-FS-NN
Product Specification
RATING:ULC-UL:16125VAC T105
1/2HP 125VAC 3/4HP 250VAC
ENEC:16(6)/250VAC 1E4 T125/55
10(4)/250VAC5E4 CIRCUIT:ON-OFF DPST 4P
VOLTAGE:220VAC CONTACT RESISTANCE:30m OHMS Max
INSULATION RESISTANCE:DC500V 100M OHMS Min
WITHSTAND VOLTAGE:AC 1500V 1 Minute
ELECTRICAL LIFE:10000 Cycles at Full Load
OPERATIONFORCE:1000~1500gf
OPERATION TEMPERATURE RANGE:-25~+125°C
Application
• 通信设备• 无线设备• 民用电子设备
• 自动化设备• 交通运输设备• 电子测试。
产品词：
按键开关，带灯按键开关，
带灯按钮开关，复位按钮开关，
复位按键开关，自锁按钮开关

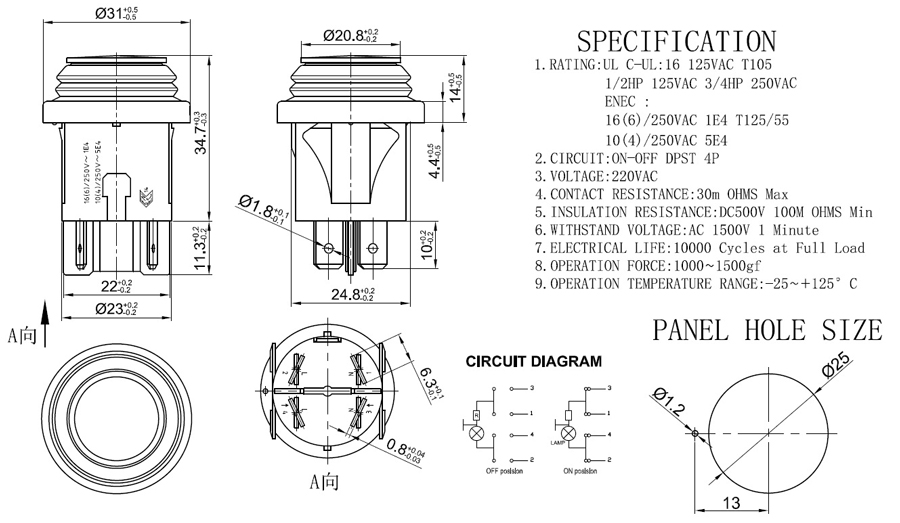

Drawing
Order Coding Diagram
