LED PUSH BUTTON SWITCHE，HONYONE

PB26-13M-B-WT-U-121

Product Specification

Circuit :SPDT
Rating :0.4VA 28VDC
Contact resistance :100mΩ Max.
lnsulation resistance :DC 500V 10OMΩ Min.
Withstand voltage :AC 500V for 1 minute;
Operating force :200±100gf ;
Total travel :2.2±0.5mm
Mechanical life :Over 200,000 cycles;
Electrical life :Over 100,000 cycles;
Manual welding :350°C for 3 seconds
Operating temperature :-25°C~+70°C

Application

Video processor 视频处理器

Security Monitoring Equipment

安防监控设备

Teaching recording and broadcasting equipment

教学录播设备

Consumer Electronics 消费类电子

Audio equipment 音响设备

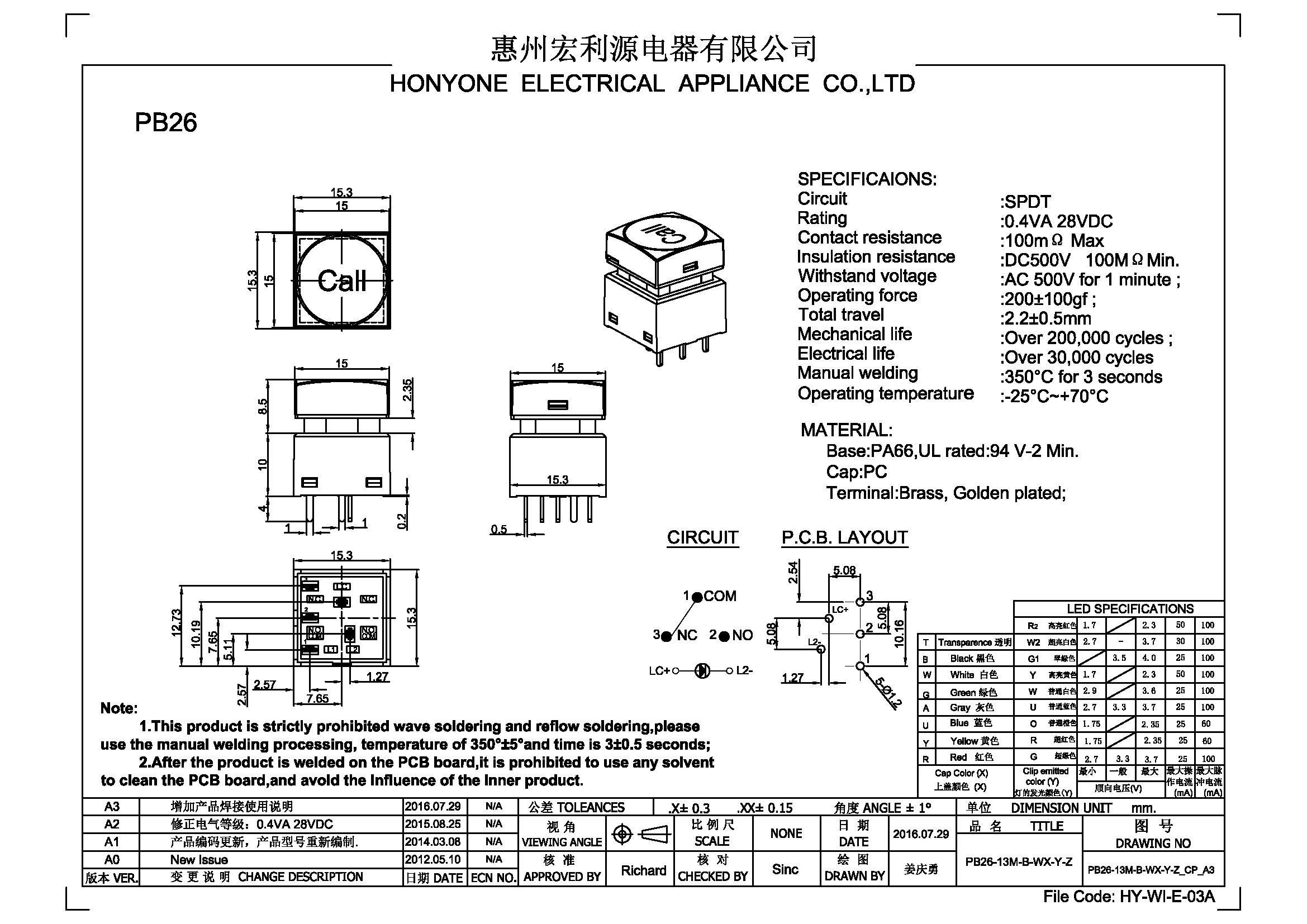

Drawing

Order Coding Diagram

PDF Download
