HONYONE，LED PUSH BUTTON SWITCHES

KS12-A1.5-BYN-5N-S

Product Specification

VOLTAGE MIN./MAX.: 2 V DC / 30 V DC
CURRENT MIN./MAX.: 10 mA /100 mA
DIELECTRIC STRENGTH (50 Hz, 1 min): ≥ 500 V
TOTAL TRAVEL: 1 mm, 1,5 mm, 2 mm
OPERATING LIFE :1,000,000 operations
CONTACT RESISTANCE: Initial ≤ 50 mΩ
INSULATION RESISTANCE: ≥ 100M Ω
BOUNCE TIME: ≤ 1 ms
Operating speed 100 mm/s (3.94/s)
PROTECTION CLASS: IP 40/IP67(KS12C)
OPERATING TEMPERATURE: -40˚C to 85˚C

Application

• Electronic handle 电控手柄
• Off-road transportation 户外交通运输
• Joysticks 操纵杆
• Typically used in cranes 起重机
• Construction equipment 建筑工程机械
• Agricultural equipment 农业设备
• Mining,equipment. 采矿设备

• Computers & network equipment

电脑周边设备

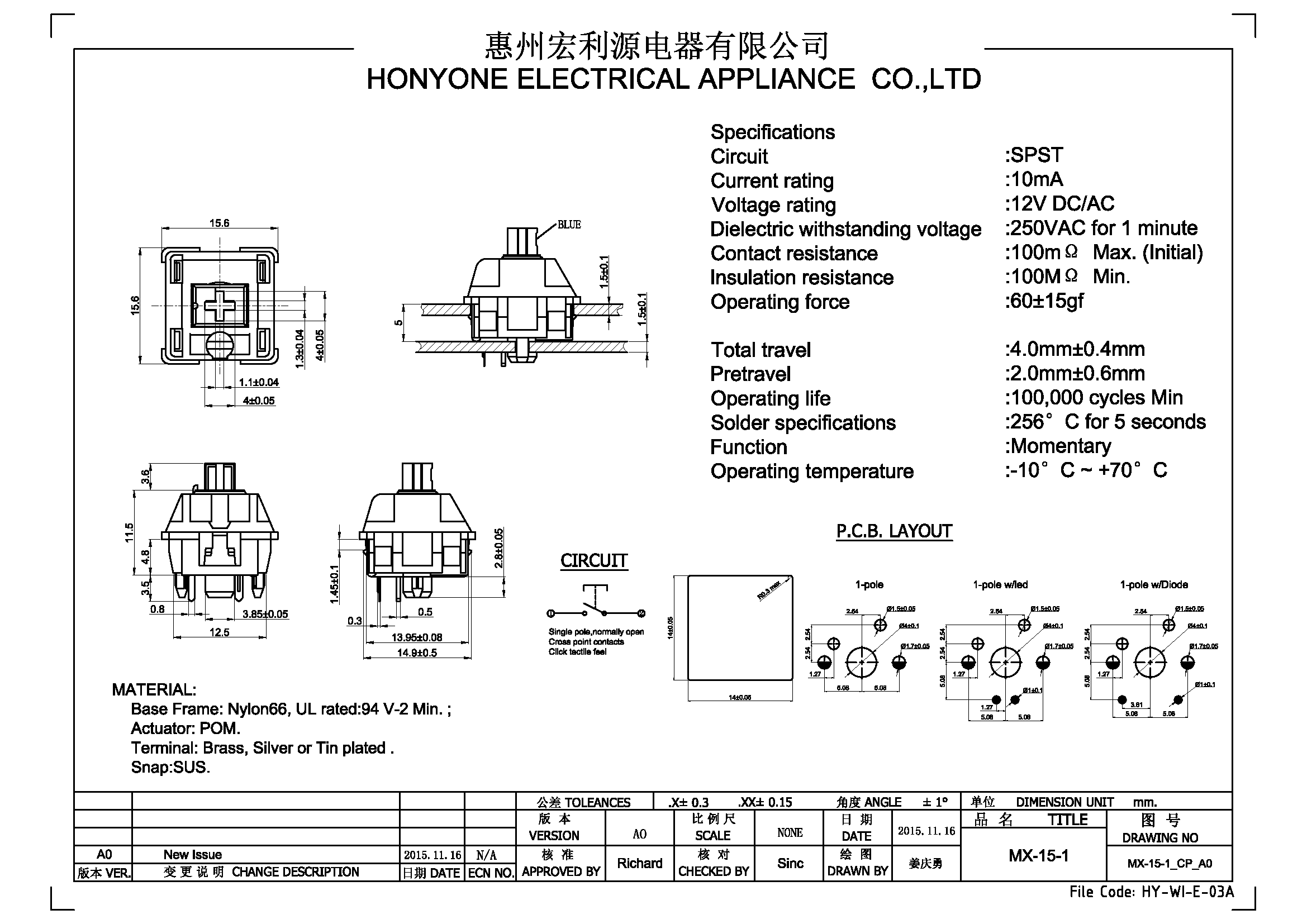

Drawing

Order Coding Diagram

PDF Download
