CLASSIFICATION
PRODUCT MODEL:LR-210-C51-BA Metal Waterproof Switch
LR-210-C51-BA Metal Waterproof Switch
PRODUCT SPECIFICATION:
Rating:20A 250VAC；
22A 125VAC；
Contact Resistance: 50mΩ Max.；
Dielectric Strength:1890VAC 50Hz(60Hz) For 1 minute;
Insulation Resistance: 100MΩ;
Mechanical Life:10,000 cycles；
Operating Temperation:-30°C~80°C；
Function: OFF-ON
22A 125VAC；
Contact Resistance: 50mΩ Max.；
Dielectric Strength:1890VAC 50Hz(60Hz) For 1 minute;
Insulation Resistance: 100MΩ;
Mechanical Life:10,000 cycles；
Operating Temperation:-30°C~80°C；
Function: OFF-ON
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

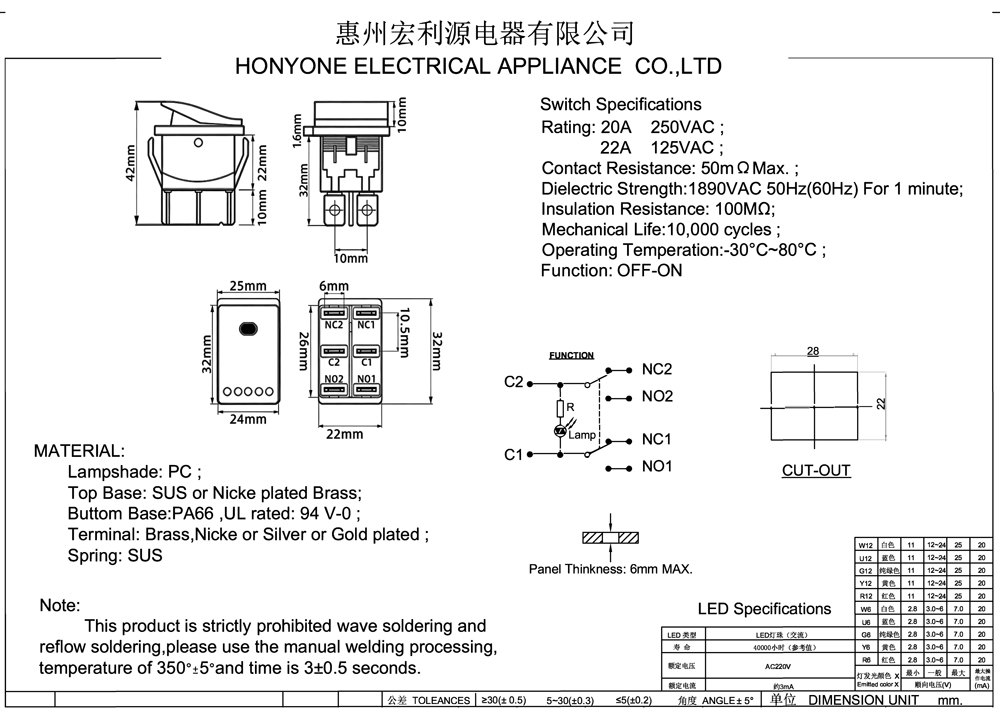

DRAWING
ORDER CODING DIAGRAM
