CLASSIFICATION
PRODUCT MODEL:PA16-13-RBW-W2-20
PA16-13-RBW-W2-20
PRODUCT SPECIFICATION:
Resistive:2A 24VDC
Contact Resistance:100mΩ Max.
Insulation Resistance:100MΩ@500DVC
Dielectric Strength:AC 500V 1 minute
Mechanical Life:1,000,000cycles
Operating Temperation:-20°C~+65°C
Switch action:Momentray
Actuator Ingress Protection: IP65,IP67 (Front Panel).
Total traver:1.5±0.3mm
Operating Force:7±2N
Torque:0.5 to 1 Nm max.applied to nut
Contact Resistance:100mΩ Max.
Insulation Resistance:100MΩ@500DVC
Dielectric Strength:AC 500V 1 minute
Mechanical Life:1,000,000cycles
Operating Temperation:-20°C~+65°C
Switch action:Momentray
Actuator Ingress Protection: IP65,IP67 (Front Panel).
Total traver:1.5±0.3mm
Operating Force:7±2N
Torque:0.5 to 1 Nm max.applied to nut
Application：
1.Designed for waterproof and dustproof applications, suitable for harsh outdoor and underwater environments.
2.Supports high-power power supply, not limited to signal transmission only.
3.Maximum rated working power: 500W

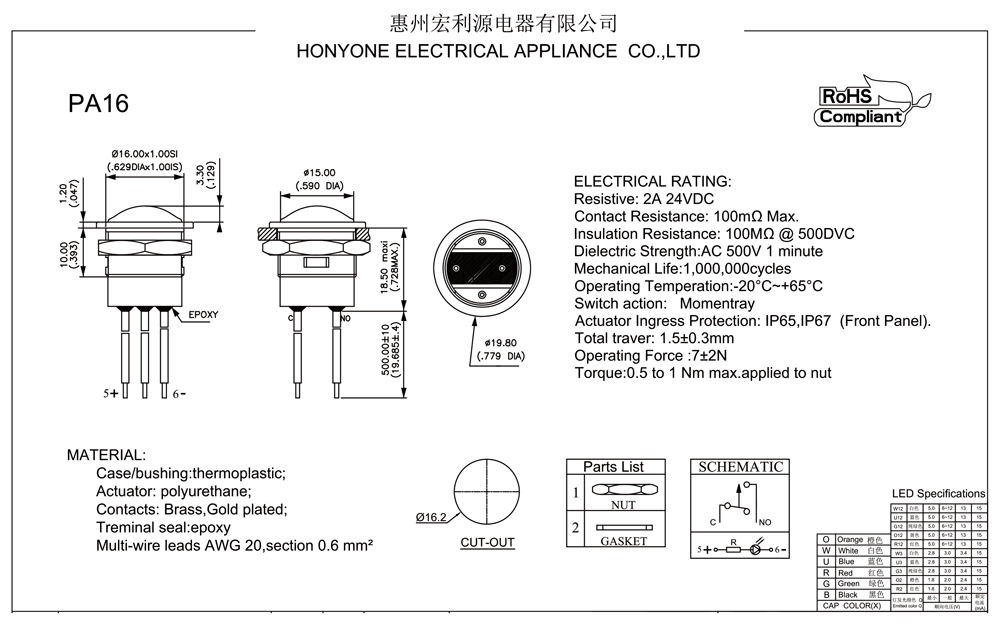

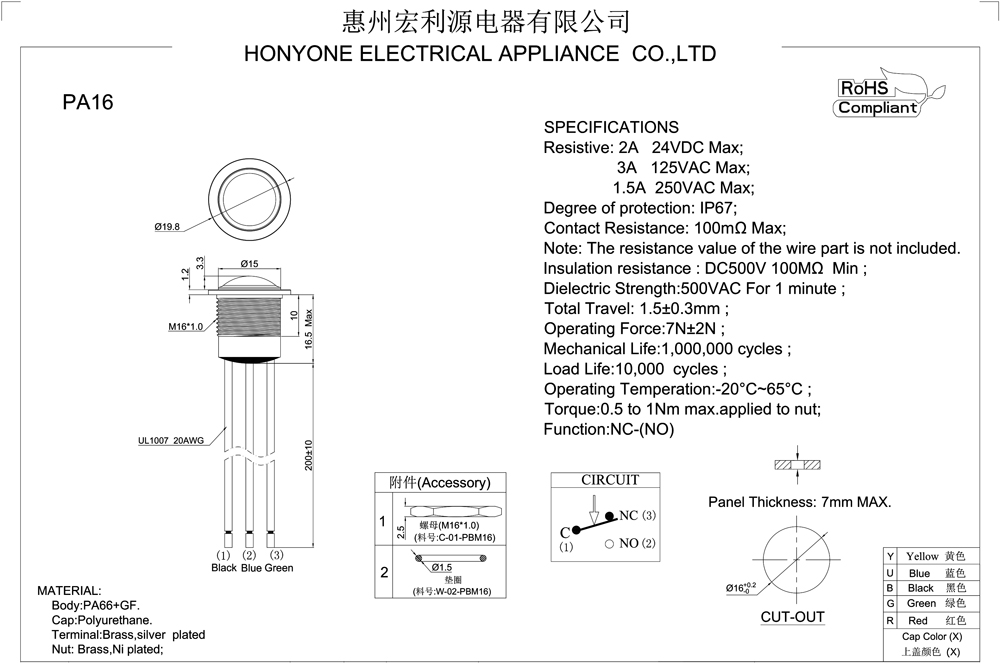

DRAWING

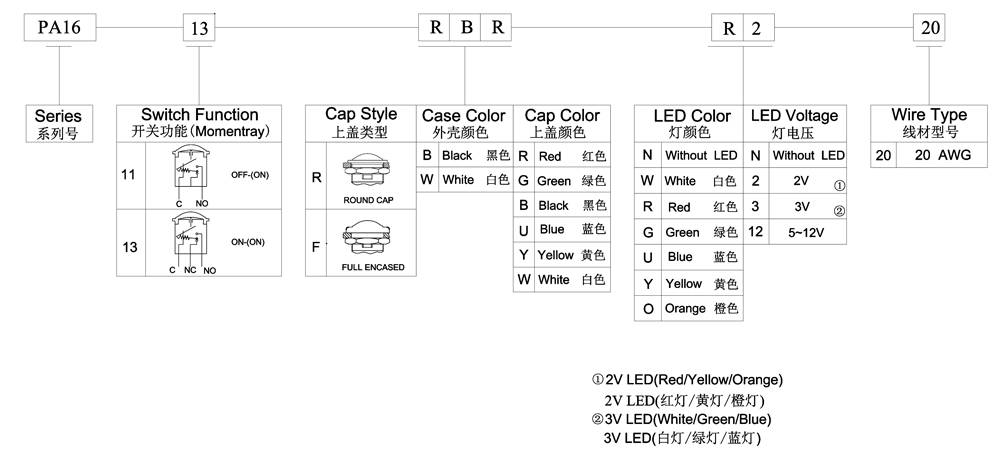

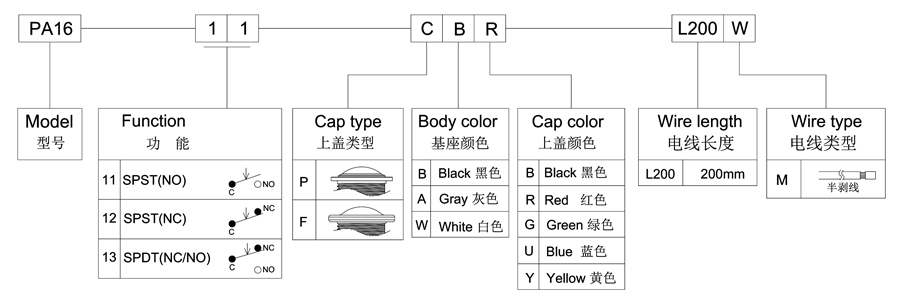

ORDER CODING DIAGRAM
