CLASSIFICATION
PRODUCT MODEL:PR-210-D0L-BBR
PR-210-D0L-BBR
PRODUCT SPECIFICATION:
Rating:10A 250VAC；
12A 125VAC；
Contact Resistance: 50mΩ Max.；
Dielectric Strength:1890VAC 50Hz(60Hz) For 1 minute；
Insulation Resistance:100MΩ;
Mechanical Life:10,000 cycles (Min)；
Nut Torque:5~14N;
Operating Temperation:-30°C~80°C；
Function: OFF-ON
12A 125VAC；
Contact Resistance: 50mΩ Max.；
Dielectric Strength:1890VAC 50Hz(60Hz) For 1 minute；
Insulation Resistance:100MΩ;
Mechanical Life:10,000 cycles (Min)；
Nut Torque:5~14N;
Operating Temperation:-30°C~80°C；
Function: OFF-ON
Application：
Computer Peripherals、Consumer Electronics
Household appliances、Power Tools Series
Car Rail Transportation、Electronic toys
Product word
ROCKER SWITCHES， waterproof rocker switches,
large current rocker switches,
reset rocker switches, double knife rocker switches,
light rocker switches, high power rocker switches,
explosion-proof rocker switches, LED rocker switches
Household appliances、Power Tools Series
Car Rail Transportation、Electronic toys
Product word
ROCKER SWITCHES， waterproof rocker switches,
large current rocker switches,
reset rocker switches, double knife rocker switches,
light rocker switches, high power rocker switches,
explosion-proof rocker switches, LED rocker switches

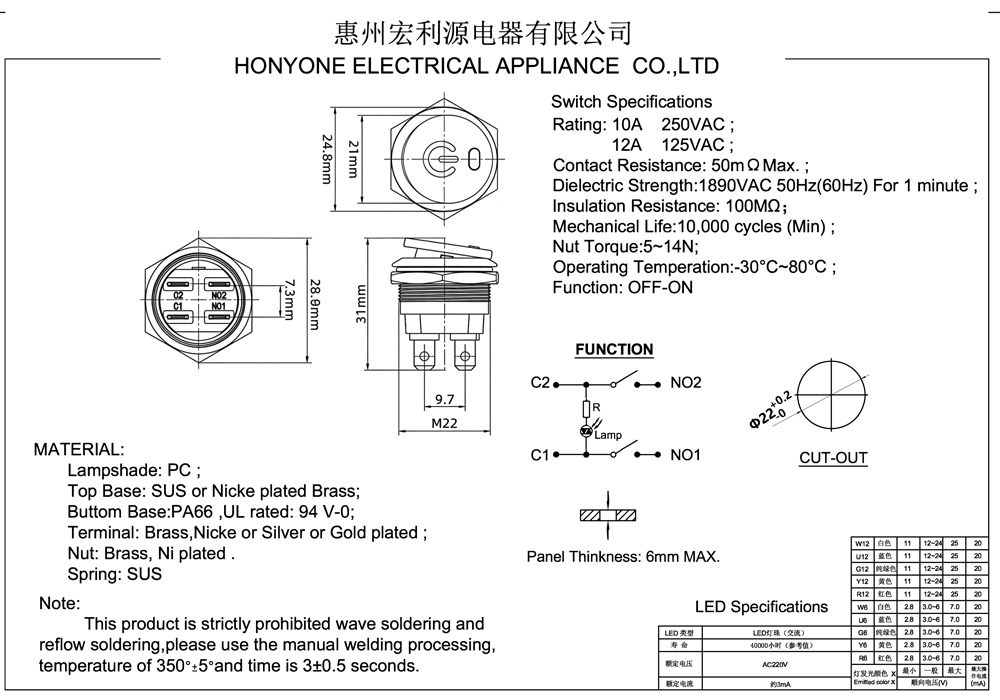

DRAWING
ORDER CODING DIAGRAM
