CLASSIFICATION
PRODUCT MODEL:PR-16-110-F-PG3-S0 16mm
PR-16-110-F-PG3-S0 16mm
PRODUCT SPECIFICATION:
Rating: 15A 250VAC；
20A 125VAC；
Degree of protection: IP67;
Contact Resistance: 50mΩ Max.；
Dielectric Strength: 1500vAC For 1 minute；
Insulation resistance：DC500V 100MΩ Min
Mechanical Life:30,000 cycles；
Load Life: 10,000 cycles；
Operating Temperation: 0°C~55°C；
20A 125VAC；
Degree of protection: IP67;
Contact Resistance: 50mΩ Max.；
Dielectric Strength: 1500vAC For 1 minute；
Insulation resistance：DC500V 100MΩ Min
Mechanical Life:30,000 cycles；
Load Life: 10,000 cycles；
Operating Temperation: 0°C~55°C；
Application：
Computer Peripherals 电脑外设
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

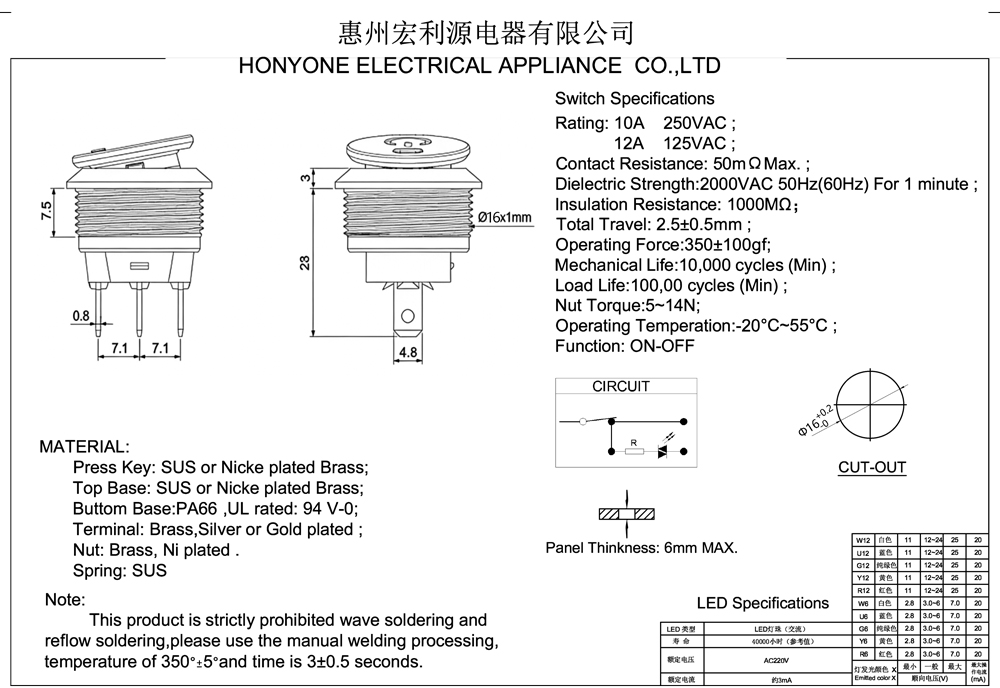

DRAWING
ORDER CODING DIAGRAM
