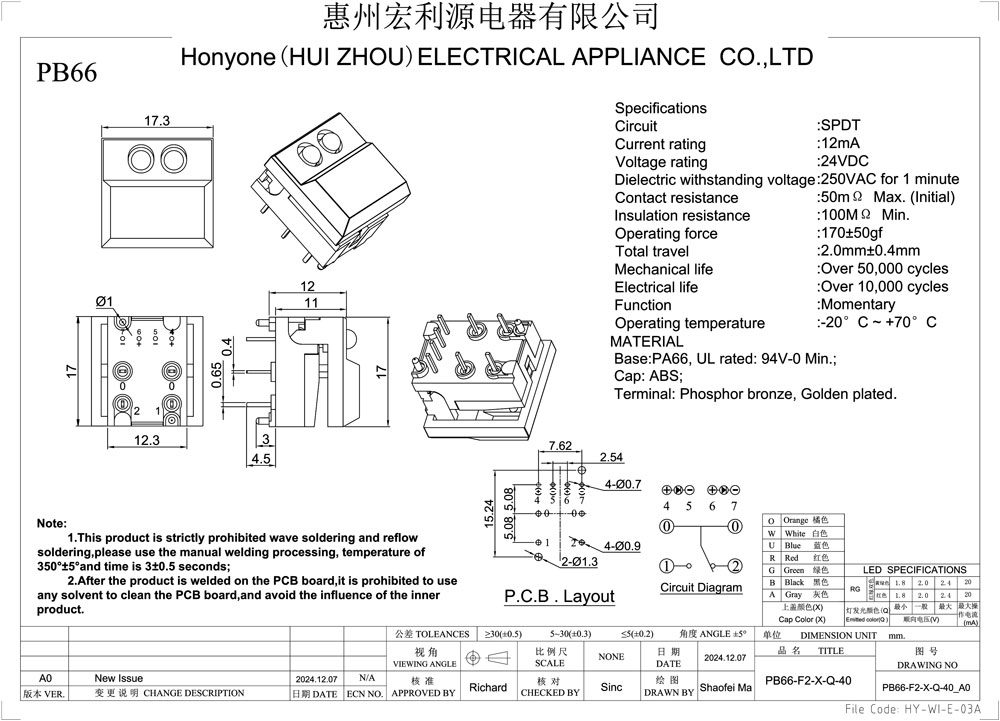

Circuit:SPDT
Current rating:12mA
Voltage rating:24VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact resistance:50mΩ Max.(lnitial)
Insulation resistance:100MΩ Min.
Operating force:170±50gf
Total travel:2.0mm±0.4mm
Mechanical life:Over 50,000 cycles
Electrical life:Over 10,000 cycles
Function:Momentary
Operating temperature:-20°C~+70°C
