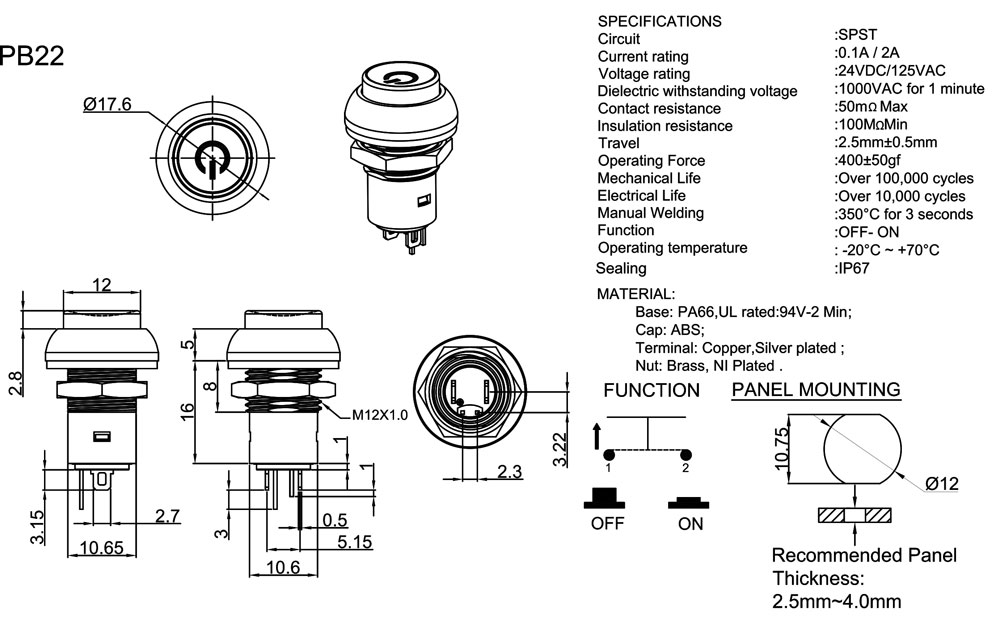

产品规格：
Circuit :SPST
Current rating :0.1A/ 2A
Voltage rating :24VDC/125VAC
Dielectric withstanding voltage
:1000VAC for 1 minute
Contact resistance :50mΩ Max
Insulation resistance:100MΩ Min
Full Travel :2.5mm±0.5mm
Lock Travel :1.5mm±0.5mm
Operating Force :400+50gf
Mechanical Life :Over 100,000 cycles
Electrical Life :Over 10,000 cycles
Manual Welding :350°C for 3 seconds
Function :OFF-ON
Operating temperature:-20°C~+70°C
Level of protection :IP67
应用领域：
APPLICATIONS
• Communications 通信设备
• Data entry 数据录入设备
• Hand-held control modules 人工控制手柄
• Outdoor controls 户外电子设备
• Mass transport controls 公共交通车辆控制
• Instrumentation 仪器仪表
