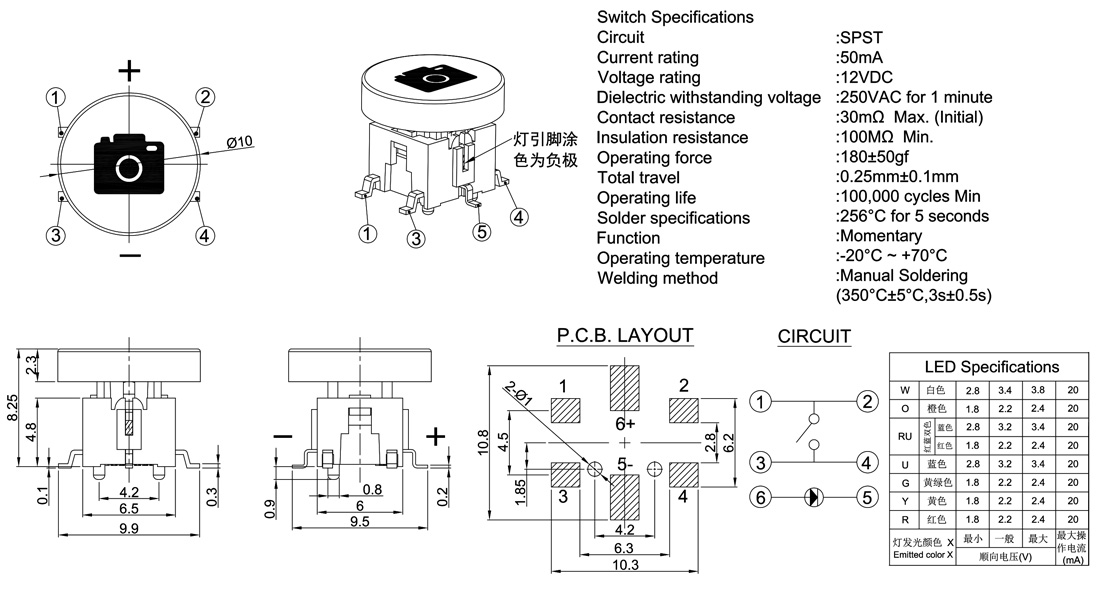

产品规格：
Circuit:SPST
Current rating:50mA
Voltage rating:12VDC
Dielectric withstanding voltage :
250VAC for 1 minute
Contact resistance:30mΩ Max. (Initial)
Insulation resistance:100MΩ Min.
Operating force:250±50gf:180±50gf
Total travel:0.25mm±0.1mm
Operating life:100,000 cycles Min
Solder specifications:256°C for 5 seconds
Function:Momentary
Operating temperature:-20°C~ +70°C
Welding method:Manual Soldering
(350°C+5°C,3s+0.5s)
