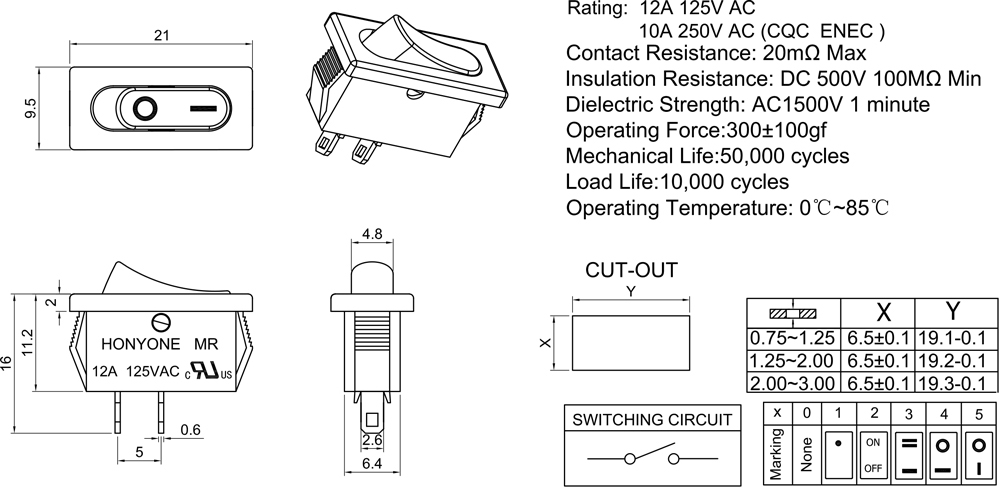

Rating:12A 125VAC
10A 250VAC (VDE CQC ENEC)
Contact Resistance:20mΩ Max
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 1500V 1 minute
Operating Force:300±100gf
Mechanical Life:50,000cycles
Load Life:10,000 Cycles
Operating Temperature:0°C~85°C
Safety Approval
