CLASSIFICATION
PRODUCT MODEL:T7011-P
T7011-P
PRODUCT SPECIFICATION:
Rating
15A 125V AC 1/8HP
10A 250V AC 1/3HP
Contact resistance
50mΩ Max
Insulation resistance
DC 500V 100MΩ Min
Dielectric strength
AC 1500V 1 minute
15A 125V AC 1/8HP
10A 250V AC 1/3HP
Contact resistance
50mΩ Max
Insulation resistance
DC 500V 100MΩ Min
Dielectric strength
AC 1500V 1 minute
Application：
取暖器 heater电风扇 Electric fan
监控摄像头 Surveillance camera
冰箱 refrigerator
空调air conditioning
转向射灯 to shoot the light
洗衣机 washing machine
饮水机等家用电器 water dispenser
其他机械设备Other mechanical equipment

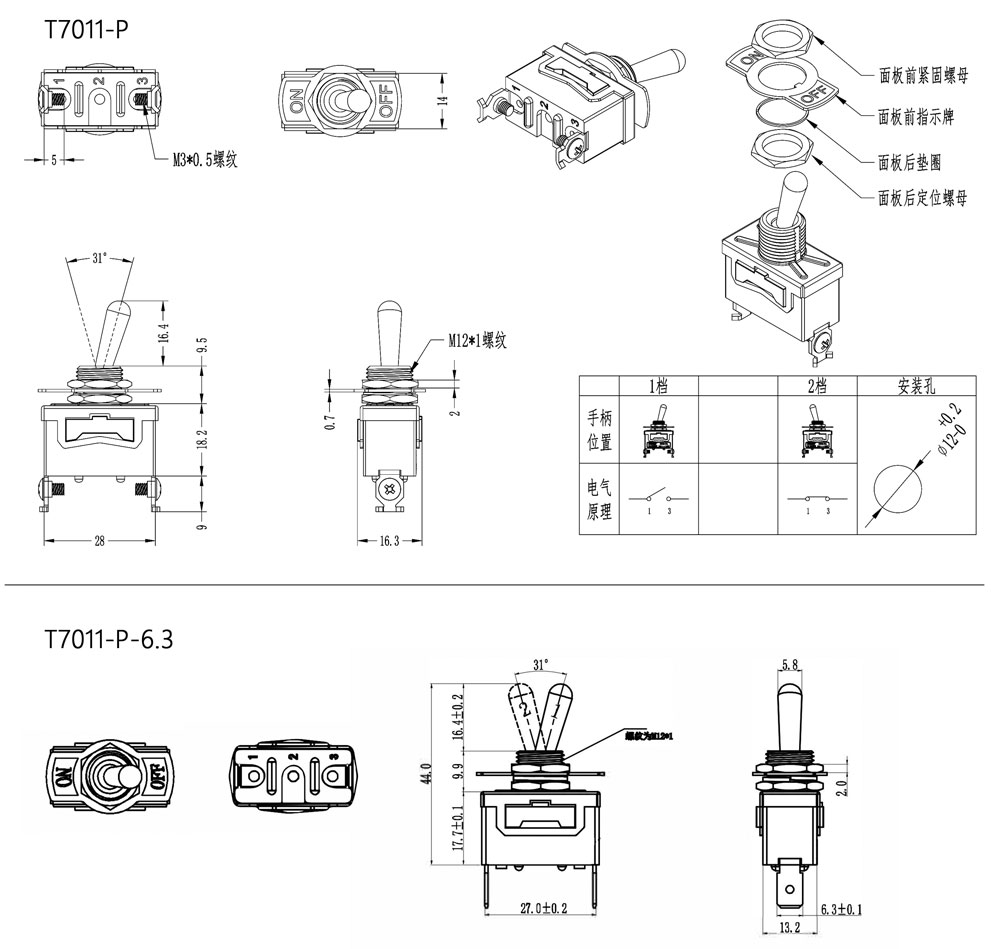

DRAWING
ORDER CODING DIAGRAM
