PRODUCT MODEL:NR01103
NR01103
PRODUCT SPECIFICATION:
Logic Level:0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA~ 0.1A @ 20mV ~ 28V)
Contact Resistance:100 milliohms maximum
Insulation Resistance:100 megohms minimum @ 500V DC
Dielectric Strength:500V AC minimum for 1 minute minimum
Mechanical Life:30,000 cycles minimum
Electrical Life:10,000 cycles minimum
Nominal Operating Torque: 0.02Nm (0.177 Ib.in)
Contact Timing:Nonshorting
Indexing:45° for 3-position, 4-position & 5-position
(Applicable Range 0.1mA~ 0.1A @ 20mV ~ 28V)
Contact Resistance:100 milliohms maximum
Insulation Resistance:100 megohms minimum @ 500V DC
Dielectric Strength:500V AC minimum for 1 minute minimum
Mechanical Life:30,000 cycles minimum
Electrical Life:10,000 cycles minimum
Nominal Operating Torque: 0.02Nm (0.177 Ib.in)
Contact Timing:Nonshorting
Indexing:45° for 3-position, 4-position & 5-position
Application：
FEAtuRES• Requires Minimum Distance Behind
the Panel
• Adjustable Stop Types Provide
Prototypes Immediately
• Industrial Quality, Economically
Priced
• RoHS Compliant

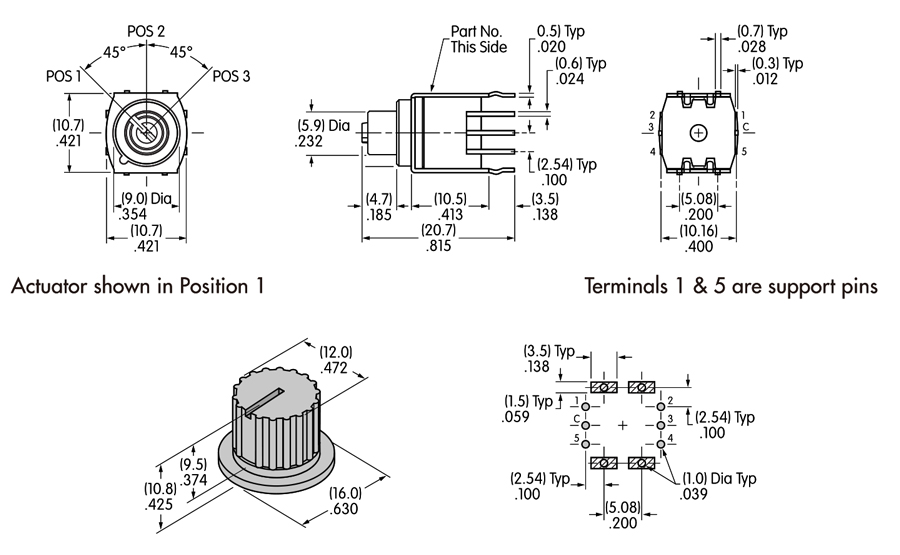

DRAWING
ORDER CODING DIAGRAM
