CLASSIFICATION
PRODUCT MODEL:RS22
RS22
PRODUCT SPECIFICATION:
Circuit:SPST
Current rating:3A
Voltage rating:28VDC
Maximum breaking current:125mA (28VDC)
Minimum operating current:10µA (5VDC)
Dielectric withstanding voltage:500VAC for 1 minute
Contact resistance:100mΩ Max. (Initial)
:200mΩ Max. (Final)
Insulation resistance:1000MΩ Min.
Operating force:39.2mN·m Max.
Life Test:100,000 cycles Min
Solder specifications:260°C for 5 seconds
Operating temperature:-25°C ~ +70°C
Application：
1. Rail transit control and detection system.2. Testing equipment and instruments.
3. Large commercial server motherboard control system.

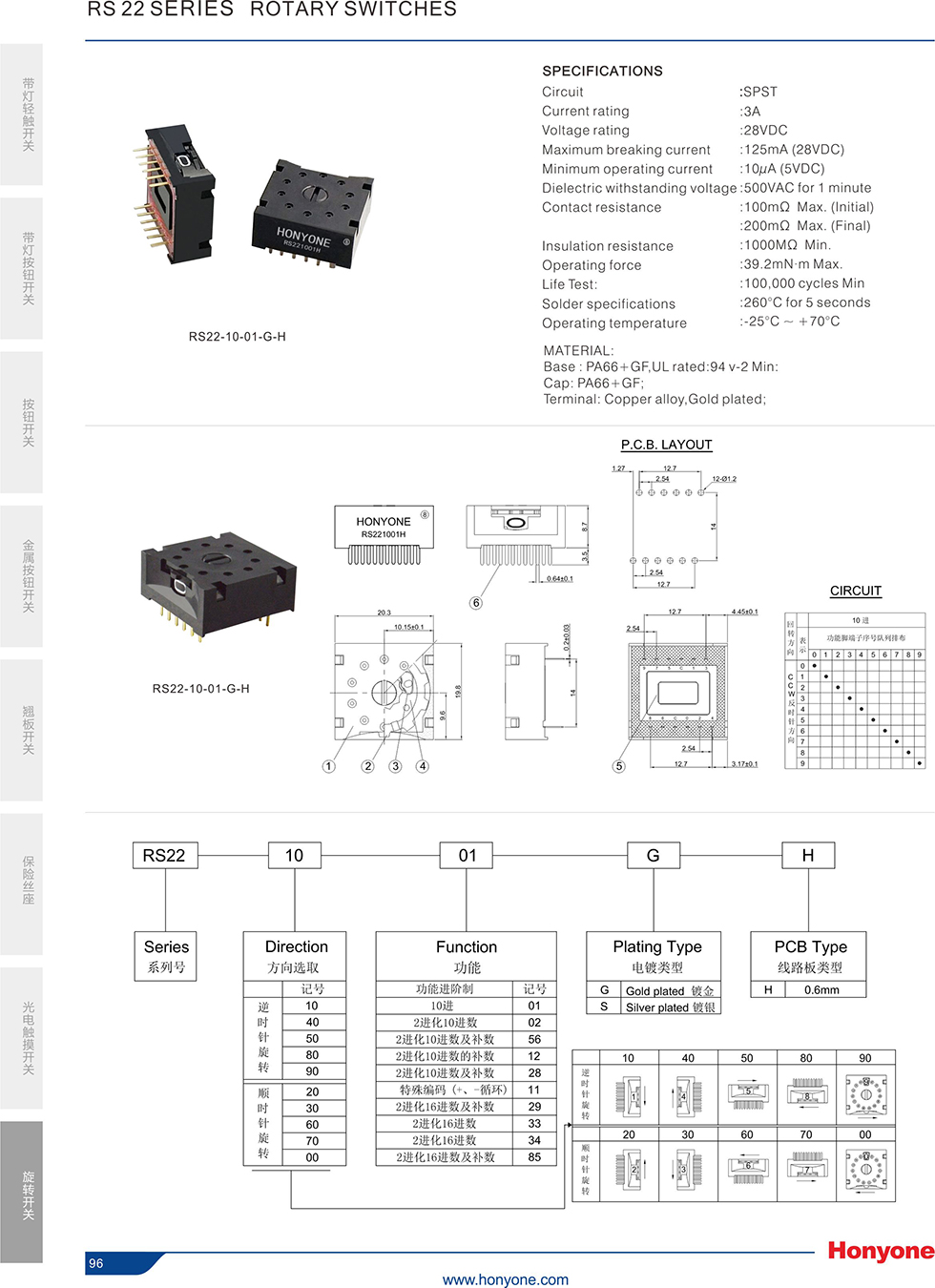

DRAWING
ORDER CODING DIAGRAM
