CLASSIFICATION
PRODUCT MODEL:PB05-R-A-R-A6
PB05-R-A-R-A6
PRODUCT SPECIFICATION:
Rating: 1A 36VDC
1A 125VAC/0.5A 250VDC
Contact Resistance: 50mΩ Max.
Insulation Resistance:DC 500V 100MΩ Min.
Dielectric Strength:AC 1000V 1 minute
Total travel:2.0±0.5mm
Operating Force:400±100gf
Electrial Life:10,000 cycles
Mechanical Life:20,000 cycles
Operating Temperation:-20°C~85°C
Function: OFF-ON
1A 125VAC/0.5A 250VDC
Contact Resistance: 50mΩ Max.
Insulation Resistance:DC 500V 100MΩ Min.
Dielectric Strength:AC 1000V 1 minute
Total travel:2.0±0.5mm
Operating Force:400±100gf
Electrial Life:10,000 cycles
Mechanical Life:20,000 cycles
Operating Temperation:-20°C~85°C
Function: OFF-ON
Application：
Lighting Fixtures 照明灯具
Automated production 自动化生产
Instruments and meters 仪器仪表
Professional Audio 专业音响
Testing equipment 检测设备
Electrical toys 电动玩具
Testing equipment 检测设备
Electrical toys 电动玩具

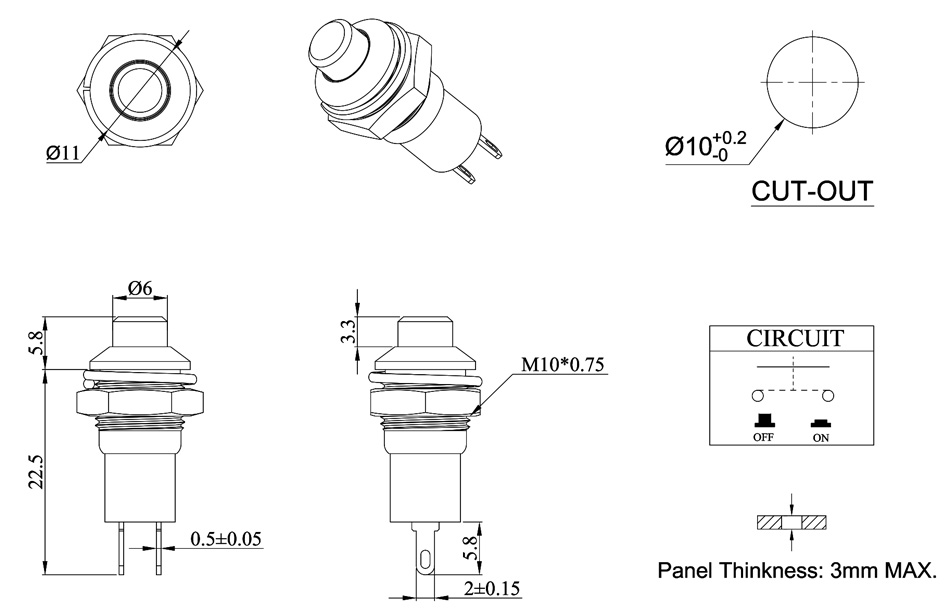

DRAWING
ORDER CODING DIAGRAM
