CLASSIFICATION
PRODUCT MODEL:PB66-F2-A-N-RG-2
PB66-F2-A-N-RG-2
PRODUCT SPECIFICATION:
Circuit:SPDT
Current rating:12mA
Voltage rating:24VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact resistance:50mΩ Max.(lnitial)
Insulation resistance:100MΩ Min.
Operating force:170±50gf
Total travel:2.0mm±0.4mm
Mechanical life:Over 50,000 cycles
Electrical life:Over 10,000 cycles
Function:Momentary
Operating temperature:-20°C~+70°C
Current rating:12mA
Voltage rating:24VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact resistance:50mΩ Max.(lnitial)
Insulation resistance:100MΩ Min.
Operating force:170±50gf
Total travel:2.0mm±0.4mm
Mechanical life:Over 50,000 cycles
Electrical life:Over 10,000 cycles
Function:Momentary
Operating temperature:-20°C~+70°C
Application：
Stage Lighting control equipment舞台灯光控制设备
Video processor 视频处理器
Matrix Controller 矩阵控制器
Security equipment 安防设备
Cashier Equipment 收银设备

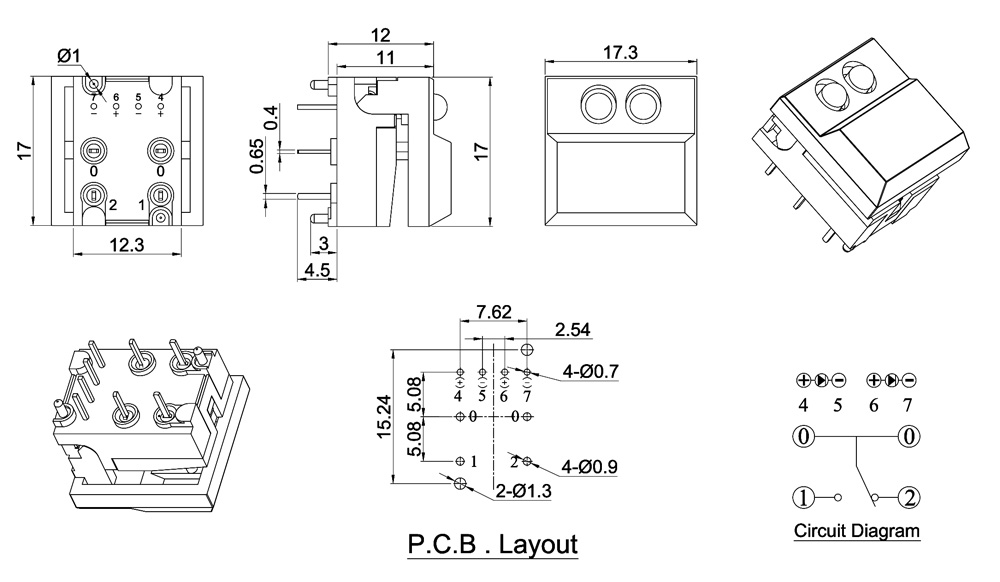

DRAWING
ORDER CODING DIAGRAM
