CLASSIFICATION
PRODUCT MODEL:OLED display 52 x36 pixels
OLED display 52 x36 pixels
PRODUCT SPECIFICATION:
Display equipment color OLED display module
Visual field 12.9mmx9.9mm (horizontal X vertical)
Color number 65,356 (16 bits: R5/G6 /B5 bits)
256 colors (8 bits: R2 /G3 /B3)
Operating temperature range -20°C~+70°C (-4°F~+158°F)
Storage temperature range -30°C~+80°C (-22°F~+176°F)
Operation life 30,000 hours (40% pixels open)
Visual field 12.9mmx9.9mm (horizontal X vertical)
Color number 65,356 (16 bits: R5/G6 /B5 bits)
256 colors (8 bits: R2 /G3 /B3)
Operating temperature range -20°C~+70°C (-4°F~+158°F)
Storage temperature range -30°C~+80°C (-22°F~+176°F)
Operation life 30,000 hours (40% pixels open)
Application：
Product features:We offer two choices of tactile and non-tactile
Ultra-bright RGB backlight, durable and bright
LCD screen, display mode custom
Super long distance, high reliability and contact resistance,
There is no noise
Scope of Use:
Audio, video and other recording studio equipment
Broadcasting system, telecommunication equipment
Industrial control, testing and measuring instruments,
Medical, commercial, aviation

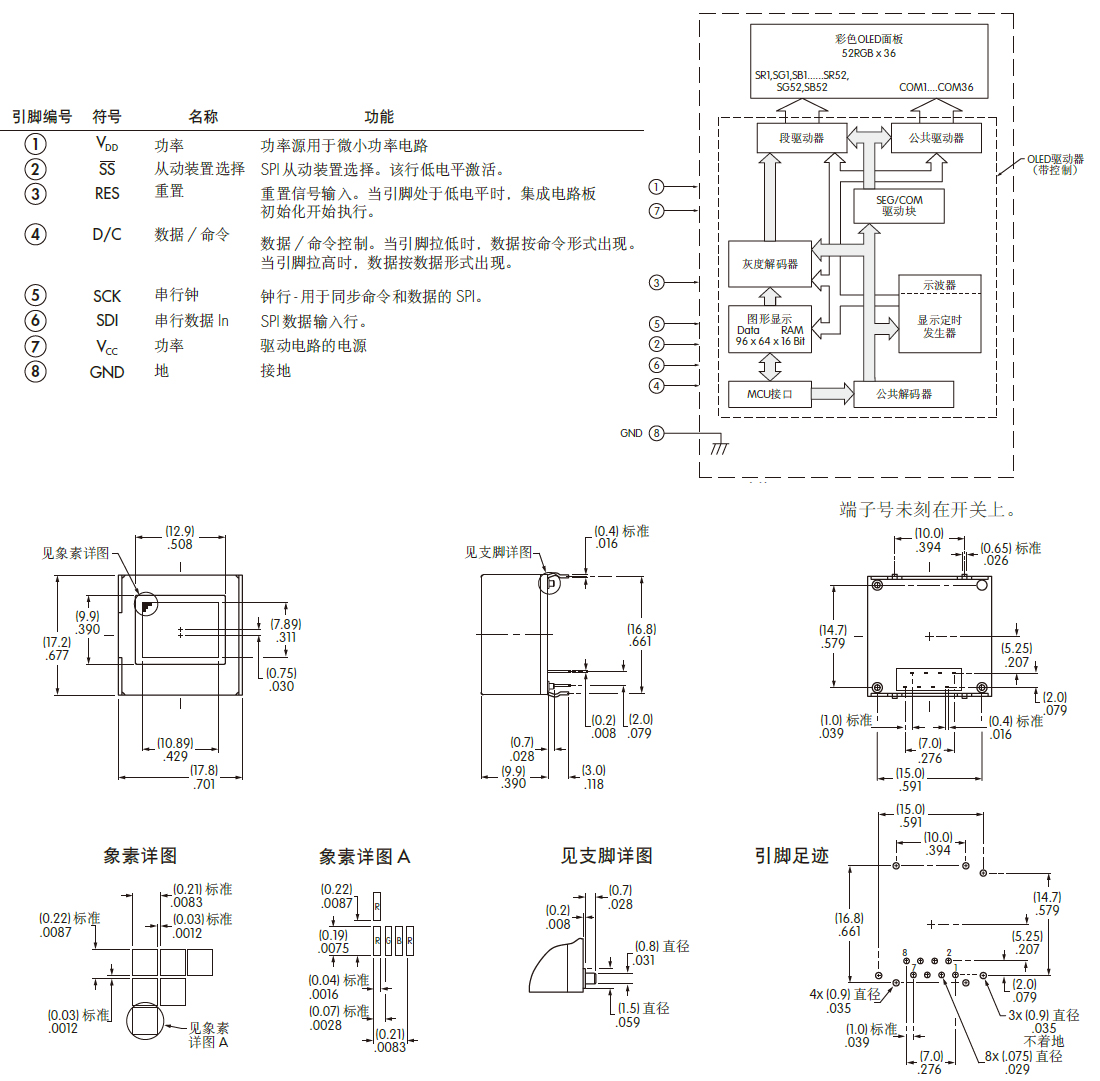

DRAWING
ORDER CODING DIAGRAM
