CLASSIFICATION
PRODUCT MODEL:OLED SWITCH TERMINAL SOCKET
OLED SWITCH TERMINAL SOCKET
PRODUCT SPECIFICATION:
Material:
Base - glass fiber reinforced PBT
Terminal - Brass/beryllium copper
Base - glass fiber reinforced PBT
Terminal - Brass/beryllium copper

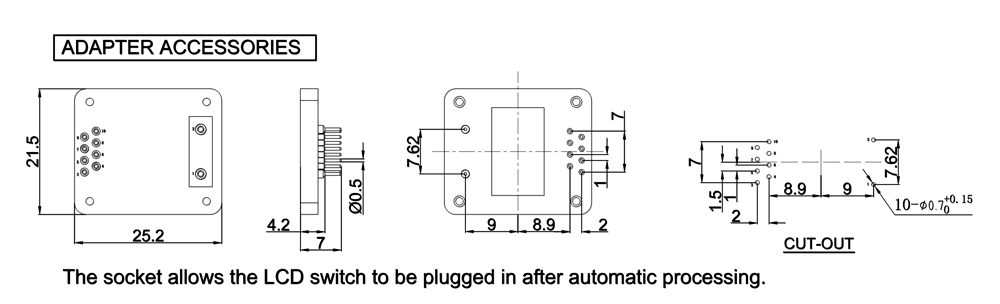

The socket allows the small SMARTSWITCH to be ed after
automatic processing
It is convenient to use the pipe to reset the equipment on siteApplication：
Industrial control, medical, broadcasting, telecommunications, military,Measuring instrument
Main Features:
High definition, contrast, 16 bit color mode to show 65563 colors
Operating life of more than 50,000 hours
Thin border, achieve full - screen display
The 0.07 inch short stroke operation brings tactile feedback to the touch panel
With bitmap display function
Low energy consumption, dustproof, long life
Epoxy resin seals PC terminals

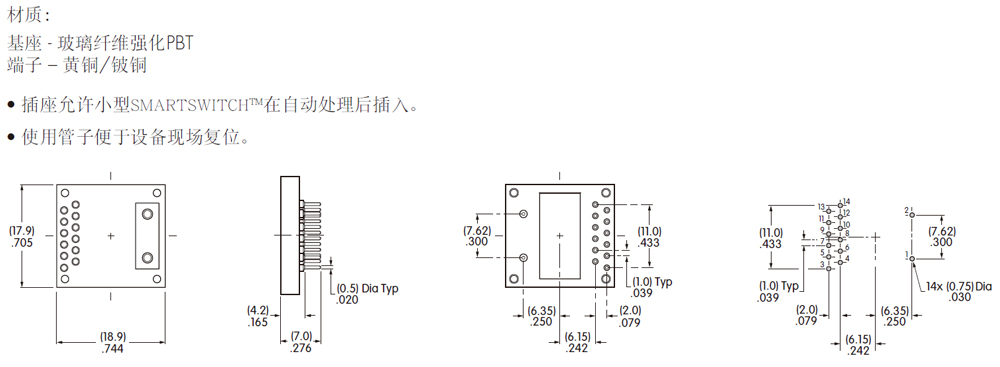

DRAWING
ORDER CODING DIAGRAM
