CLASSIFICATION
PRODUCT MODEL:PB02-M-U waterproof cap
PB02-M-U waterproof cap
PRODUCT SPECIFICATION:
Rating:6A 125V AC/3A 250VAC
Contact Resistance:6A 125V AC/3A 250VAC
Insulation Resistance:DC500V 100MΩ
withstand Voltage:1000VAC for 1 Minute
Operating Force:300±50gf
Travel:2.0±0.4mm
Life Cycle:50,000Cycles
Function:OFF-(ON)
Contact Resistance:6A 125V AC/3A 250VAC
Insulation Resistance:DC500V 100MΩ
withstand Voltage:1000VAC for 1 Minute
Operating Force:300±50gf
Travel:2.0±0.4mm
Life Cycle:50,000Cycles
Function:OFF-(ON)
Application：
Lighting Fixtures 照明灯具Automated production 自动化生产
Instruments and meters 仪器仪表
Professional Audio 专业音响
Testing equipment 检测设备
Electrical toys 电动玩具

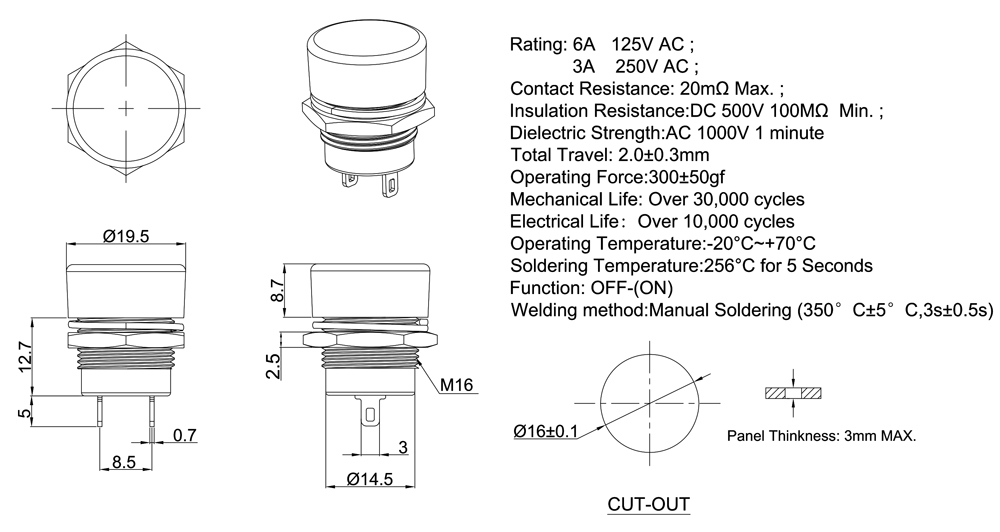

DRAWING

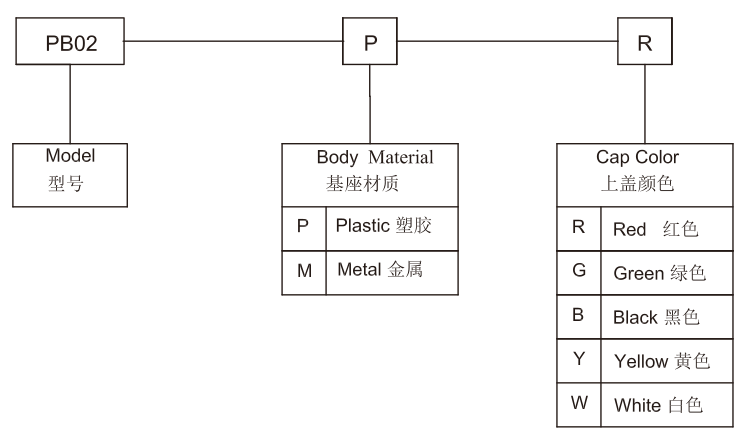

ORDER CODING DIAGRAM
