PRODUCT MODEL:PB09A-Z-210-P0L-BG-220
PB09A-Z-210-P0L-BG-220
PRODUCT SPECIFICATION:
Rating: 16A 125V AC (UL CUL)
16A 250V AC (ENEC CQC CB)
Contact Resistance: 50mΩ Max
lnsulation Resistance: DC 500V 10OMΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 500±300gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
16A 250V AC (ENEC CQC CB)
Contact Resistance: 50mΩ Max
lnsulation Resistance: DC 500V 10OMΩ Min.
Dielectric Strength: AC1500V 1 minute
Operating Force: 500±300gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperature:-30℃~+85℃
Function: OFF-ON
Application：
• Communication equipment,通信设备
• wireless application equipment 无线设备
• wireless application equipment 无线设备
• Electronic tester 电子测试。
• Automation equipment 自动化设备
• Transaction Equipment 交通运输设备
• Electronic equipment for people\’s livelihood
民用电子设备
• Automation equipment 自动化设备
• Transaction Equipment 交通运输设备
• Electronic equipment for people\’s livelihood
民用电子设备

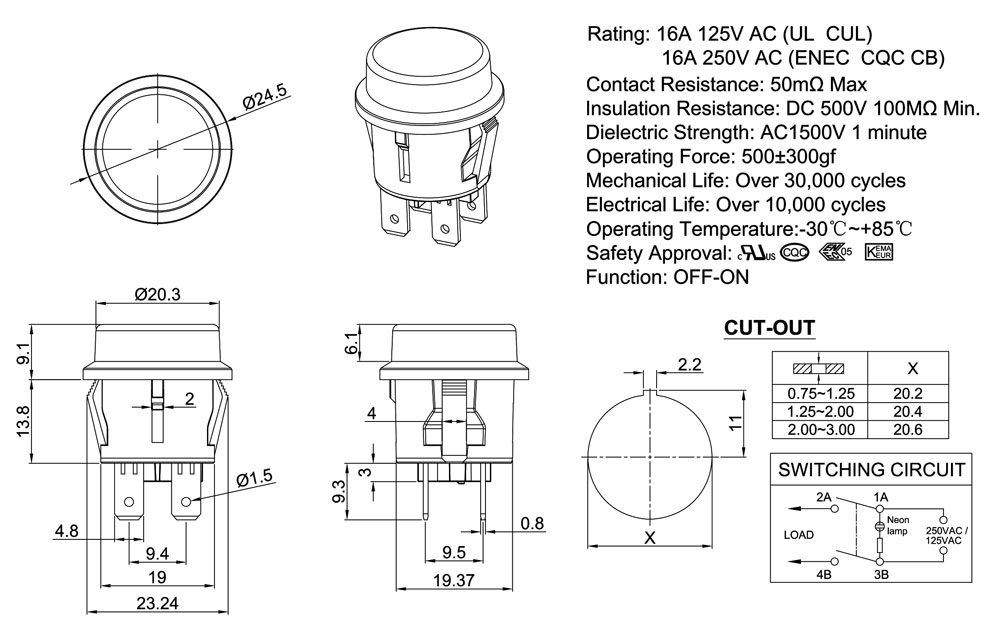

DRAWING
ORDER CODING DIAGRAM
