PRODUCT MODEL:TS7-2T-R/G-1
TS7-2T-R/G-1
PRODUCT SPECIFICATION:
Circuit                                 :SPST
Curent Rating                      :50mA
Voltage Rating                     :5-24VDC
Dielectric withstanding vltage:500VAC for 1 minute
Contact Resistance               :100mΩ Max .(intial )
Insulation Resistance            :100MΩ Min.
Operating Force                   :160±50gf or 230±50gf
Total Travel                         :0.25±0.1mm
Opearating life                     :300,000 Cycles Min
Soldear Specifications           :260°C for 3 Seconds
Function                              :Momentary
Openrating Temperature       :-20°C~+70°C
Application:
Audio / Visual              音响/视听设备
Computer Peripherals   电脑外设
Consumer Electronics   消费类电子
Instrumentation          仪器仪表
Telecommunication      电信,通信设备
Medical Equipmen        医疗设备

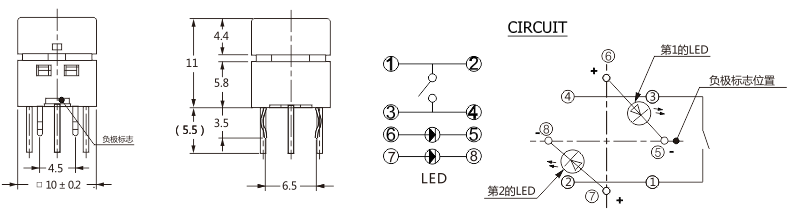

DRAWING
ORDER CODING DIAGRAM
