CLASSIFICATION
PRODUCT MODEL:S332-1
S332-1
PRODUCT SPECIFICATION:
Zinc alloy die cast housing and nylon cylinder.
Bright chrome plated standard.
3 disc tumbler mechanism.
Brass keys, nickel plated, with plastic cover.
Silver plated contacts and terminals.
S331 2 position (on-on) 60 index 3 terminals.
S332 2 position (off-on) 60 index 2 terminals.
S333 3 position (off-on-on) 60 index 3 terminals.
Hex nut or speed clip mounted.
Bright chrome plated standard.
3 disc tumbler mechanism.
Brass keys, nickel plated, with plastic cover.
Silver plated contacts and terminals.
S331 2 position (on-on) 60 index 3 terminals.
S332 2 position (off-on) 60 index 2 terminals.
S333 3 position (off-on-on) 60 index 3 terminals.
Hex nut or speed clip mounted.
Application：

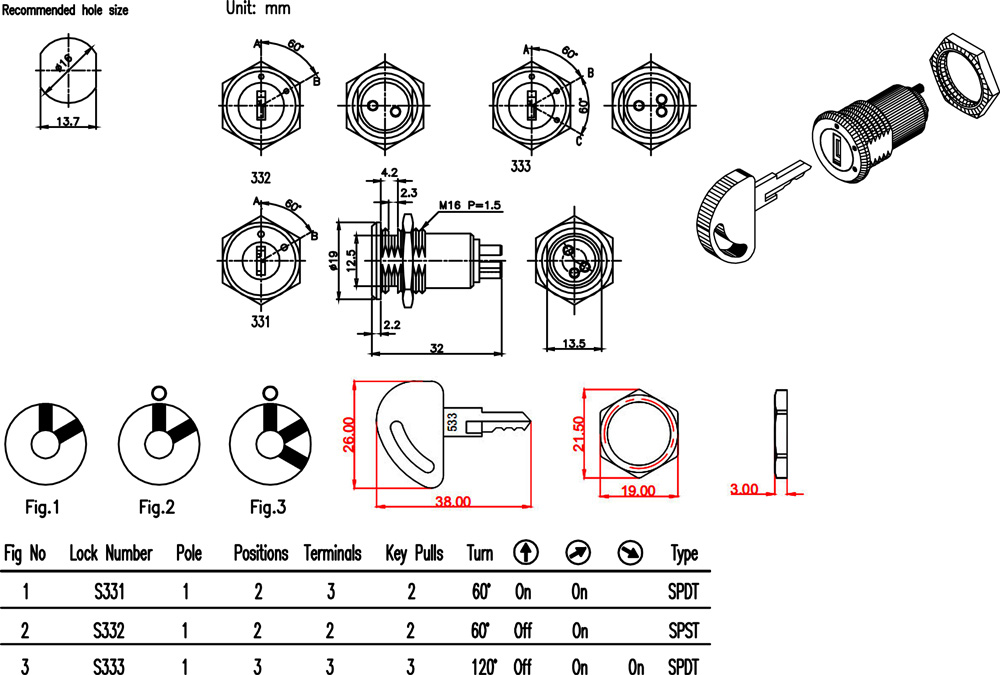

Cruise ships, electric power, chemical industry, paper making, textile, oil exploitation, military vehicles, access control appliances, etcDRAWING
ORDER CODING DIAGRAM
