CLASSIFICATION
PRODUCT MODEL:S206A
S206A
PRODUCT SPECIFICATION:
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
7 pin tumbler mechanism.
Steel made tubular keys, nickel plated.
Silver plated contacts and terminals.
S206A 2 position (off-on) 4 terminals. (2NO 2NC)
S206B 2 position (on-on) 4 terminals. (1NO 1NO)
Hex nut or speed clip mounted.
Bright chrome plated standard.
7 pin tumbler mechanism.
Steel made tubular keys, nickel plated.
Silver plated contacts and terminals.
S206A 2 position (off-on) 4 terminals. (2NO 2NC)
S206B 2 position (on-on) 4 terminals. (1NO 1NO)
Hex nut or speed clip mounted.
Application：

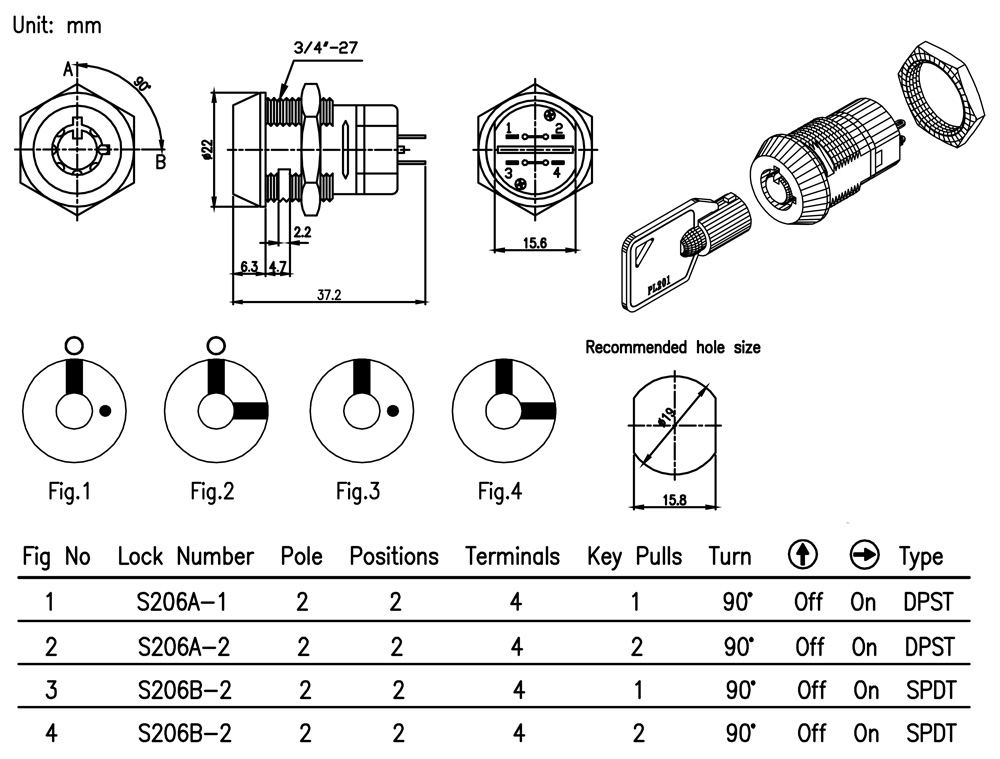

Cruise ships, electric power, chemical industry, paper making, textile, oil exploitation, military vehicles, access control appliances, etcDRAWING
ORDER CODING DIAGRAM
