CLASSIFICATION
PRODUCT MODEL:S1097
S1097
PRODUCT SPECIFICATION:
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
No pin tumbler mechanism.
Zinc alloy tubular keys, chrome plated.
“L” dimension 13mm standard; other dimensions available upon request.
Dual-functioned Key Lock Switch.
Silver plated contacts and terminals.
2 position (off-on) 2 terminals.
Hex nut or speed clip mounted.
Bright chrome plated standard.
No pin tumbler mechanism.
Zinc alloy tubular keys, chrome plated.
“L” dimension 13mm standard; other dimensions available upon request.
Dual-functioned Key Lock Switch.
Silver plated contacts and terminals.
2 position (off-on) 2 terminals.
Hex nut or speed clip mounted.
Application：

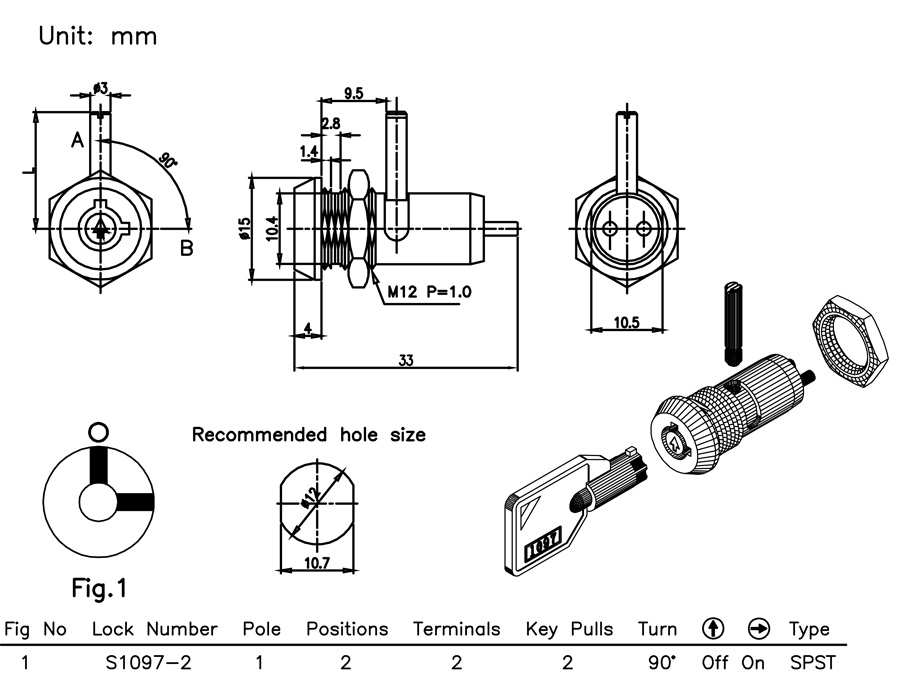

Cruise ships, electric power, chemical industry, paper making, textile, oil exploitation, military vehicles, access control appliances, etcDRAWING
ORDER CODING DIAGRAM
