CLASSIFICATION
PRODUCT MODEL:TM19-11-RW12-S0
TM19-11-RW12-S0
PRODUCT SPECIFICATION:
Rating: 5A 3-250V AC/DC ;
Degree of protction:lP67;
Contact Resistance: 50mΩ Max. ;
Dielectric Strength:1000VAC For 1 minute ;
Total Travel: 1.2± 0.4mm ;
Operating Force:2± 0.2N ;
Load Life:50,000 cycles ;
Operating Temperation:-25° C~55° C;
Function: OFF-ON
Degree of protction:lP67;
Contact Resistance: 50mΩ Max. ;
Dielectric Strength:1000VAC For 1 minute ;
Total Travel: 1.2± 0.4mm ;
Operating Force:2± 0.2N ;
Load Life:50,000 cycles ;
Operating Temperation:-25° C~55° C;
Function: OFF-ON
Application：
取暖器 heater电风扇 Electric fan
监控摄像头 Surveillance camera
冰箱 refrigerator
空调air conditioning
转向射灯 to shoot the light
洗衣机 washing machine
饮水机等家用电器 water dispenser
其他机械设备Other mechanical equipment
DRAWING

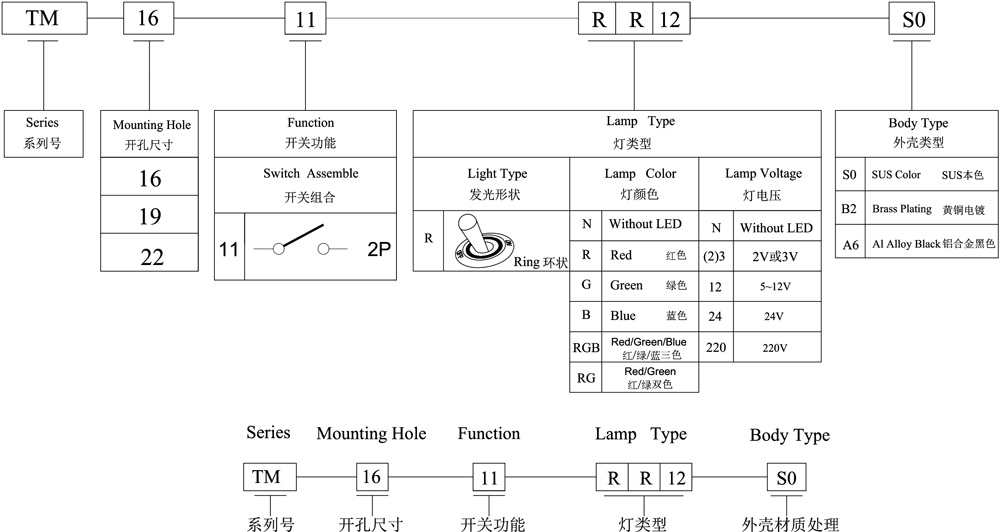

ORDER CODING DIAGRAM
