CLASSIFICATION
PRODUCT MODEL:S-03DF-DB15-S-2
S-03DF-DB15-S-2
PRODUCT SPECIFICATION:
Rating:1A 3A 6A 10A 115/250VAC
Insulation Resistance:DC 500V 50MΩMin
Dielectric Strength:1500VDC (Line/Line)
2150VDC(Line/Ground)
Temperature rise:<30°
Climatic category:25/085/21
Housing material:Iron with Nickel plating
Insulation Resistance:DC 500V 50MΩMin
Dielectric Strength:1500VDC (Line/Line)
2150VDC(Line/Ground)
Temperature rise:<30°
Climatic category:25/085/21
Housing material:Iron with Nickel plating
Application：
Dual stage filter，Ultra compact designRated currents up to 10 A
Dual fuse holder，2-pole rocker switch
Good attenuation performance
Faston or spring cage terminals
Consumer goods
EDP and office equipment
Single-phase and switch-mode power supplies
Test and measurement equipment
Medical electrical devices (MD) and InVitro-Diagnostics (IVD) equipment
Audio/Video, information and communicatio

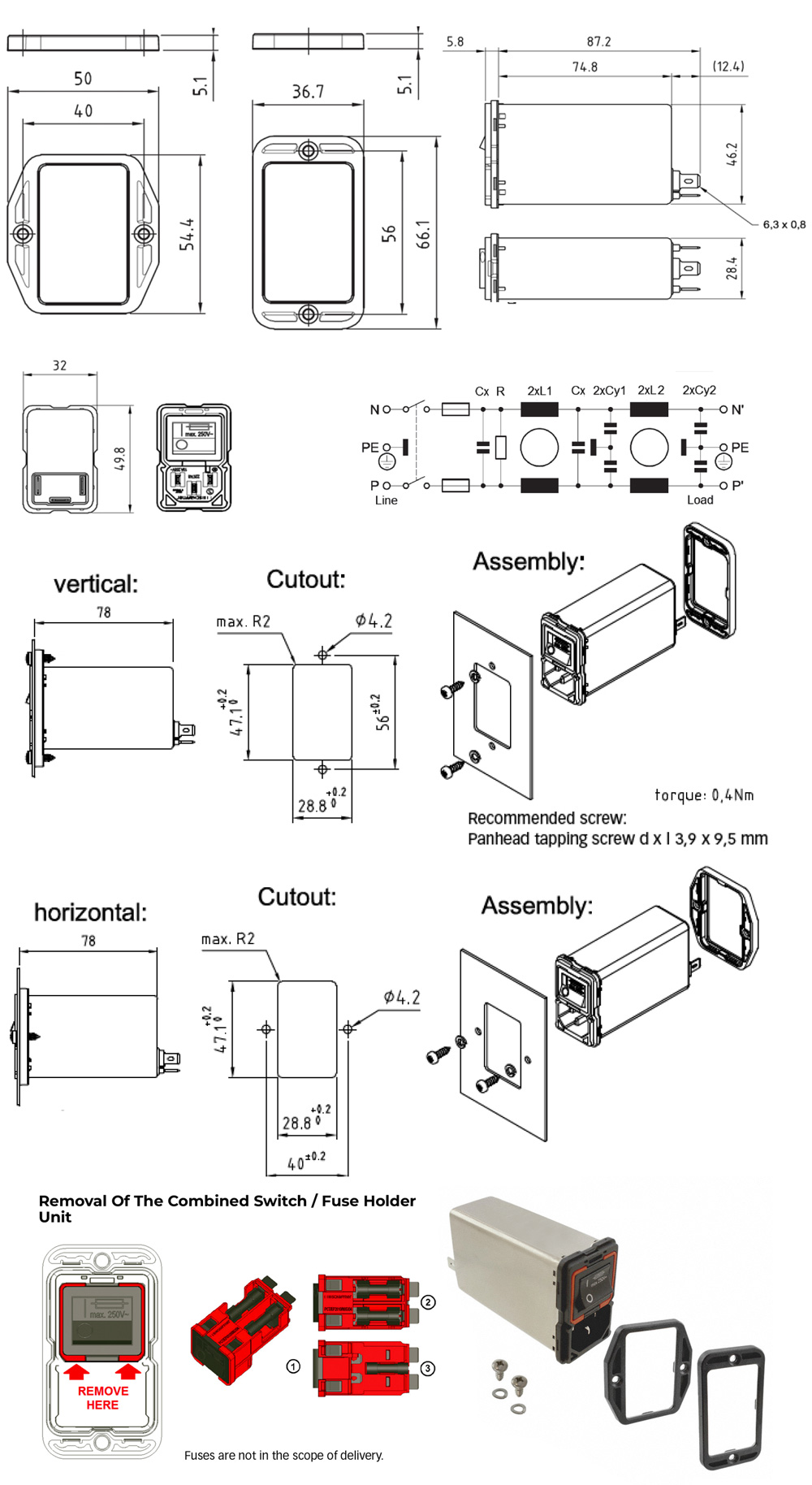

DRAWING
ORDER CODING DIAGRAM
