CLASSIFICATION
PRODUCT MODEL:FNR-EBR-H141
FNR-EBR-H141
PRODUCT SPECIFICATION:
Electrical Ratings:10mA @ 5VDC max. Logic Level
Electrical Life:1,000,000 cycles
Max Power:0.5 VA
Voltage:20-32VDC
Current:1-50mA
DWV:250 Vrms
Mechanical Life:1 .000,000 cycles
Switch Contact Seal:IP68S
Temperature Range:-40°C to +85°C
Wire:26 AWG UL 11028 Wire
Electrical Life:1,000,000 cycles
Max Power:0.5 VA
Voltage:20-32VDC
Current:1-50mA
DWV:250 Vrms
Mechanical Life:1 .000,000 cycles
Switch Contact Seal:IP68S
Temperature Range:-40°C to +85°C
Wire:26 AWG UL 11028 Wire
Application：
True ON-ON-ON triple-throw switch options真正的实现ON-ON-ON三档开关功能
Switch contacts sealed to IP68S. With the optional开关防水达IP68S级别。
Tested up to 1 million cycles 开关寿命达100万次
Maintained or momentary action, single or double pole Logic level only
开关可以做到单极与双极逻辑控制
Standard and large rocker style sizes
开关柄可以定制
Mining vehicle 应用于矿用车辆
Large agricultural machinery大型农业机械
Aerial work vehicle 高空作业车辆

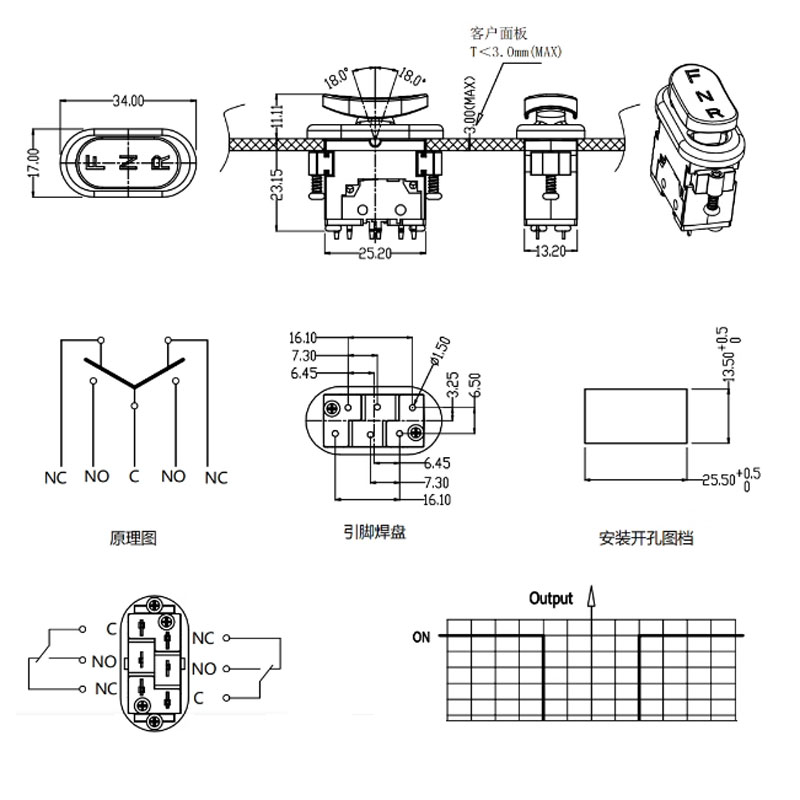

DRAWING
ORDER CODING DIAGRAM
