CLASSIFICATION
PRODUCT MODEL:FH10-206 5*20
FH10-206 5*20
PRODUCT SPECIFICATION:
Rating: 250VAC(VDE) ,600VAC/VDC(UL/CSA)
10A(VDE),16A(UL/CSA)
Rated Power Acceptance IEC: 3.2W / 10A @ Ta 23 °C;
2.5W/10A for 5x20 mm
fuse-link, see derating curves
Dielectric Strength: >3kV
>4kV between L/N-PE (50HZ 1min);
Insulation Resistance:>10MΩS, between live parts;
(500VDC: 1min)
Impulse Withstand Voltage: >4kV between L-N;
>6kV between Front Panel and L/N;
Contact Resistance: 10mso,Max;
Fuse-Link:φ5x20 or φ6.0x30mm;
Degree of Protection: IP40
10A(VDE),16A(UL/CSA)
Rated Power Acceptance IEC: 3.2W / 10A @ Ta 23 °C;
2.5W/10A for 5x20 mm
fuse-link, see derating curves
Dielectric Strength: >3kV
>4kV between L/N-PE (50HZ 1min);
Insulation Resistance:>10MΩS, between live parts;
(500VDC: 1min)
Impulse Withstand Voltage: >4kV between L-N;
>6kV between Front Panel and L/N;
Contact Resistance: 10mso,Max;
Fuse-Link:φ5x20 or φ6.0x30mm;
Degree of Protection: IP40
Application：
Circuit overload Protection电路过载保护
Automotive Electronics 汽车电子
Household appliances 家用电器
Beauty Equipment 美容器材
Medical equipment 医疗设备
Instruments and meters 仪器仪表

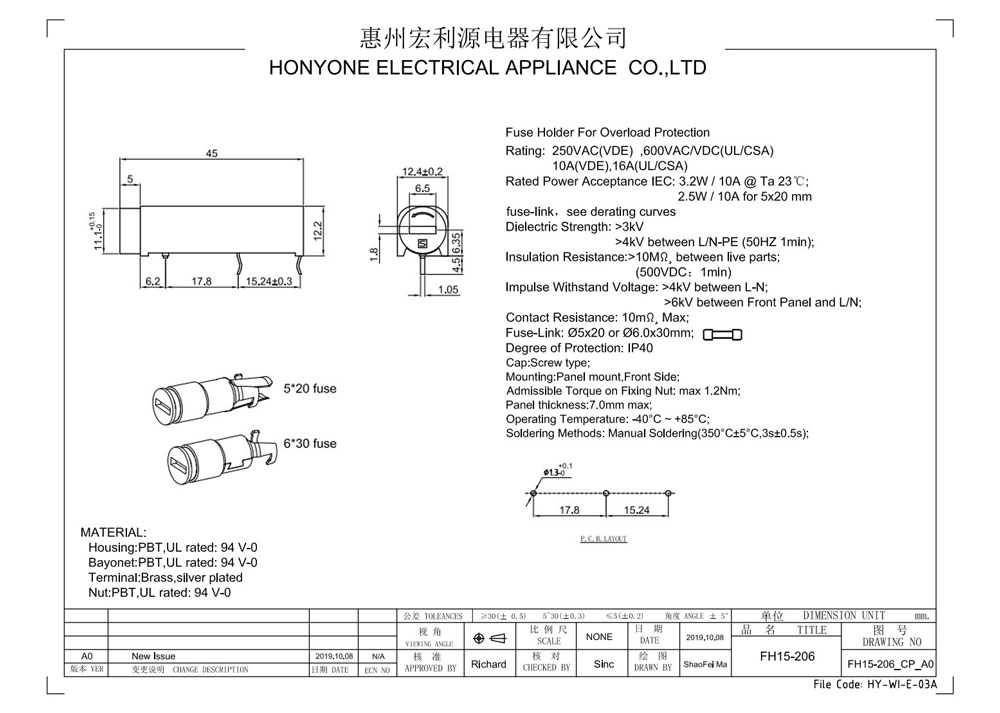

DRAWING
ORDER CODING DIAGRAM
