PRODUCT MODEL:RS8-C8-2-1
RS8-C8-2-1
PRODUCT SPECIFICATION:
Pole-Position:1 Pole,2Position~8Position
(Stop Less) are Available
Rating:0.5A 24VDC;0.2A 48VDC
Dielectric withstanding voltage：500vAC for 1 minute
Contact resistance:100mΩMax. (Initial)
:200m ΩMax.(Final)
Insulation resistance:100MΩMin.(500VDC)
Operating force:270±100gf
Life Test::2,000 cycles Min
Solder specifications:260° C for 5 seconds
Operating temperature:-25° C ~+70° C
(Stop Less) are Available
Rating:0.5A 24VDC;0.2A 48VDC
Dielectric withstanding voltage：500vAC for 1 minute
Contact resistance:100mΩMax. (Initial)
:200m ΩMax.(Final)
Insulation resistance:100MΩMin.(500VDC)
Operating force:270±100gf
Life Test::2,000 cycles Min
Solder specifications:260° C for 5 seconds
Operating temperature:-25° C ~+70° C
Application：
Features/Benefits 产品特征：
• Subminiature design saves space 微小型化设计，节约空间
• Screwdriver slot or extended shaft 螺丝刀槽，或者延长轴
• Positive detent 正顺时针旋转
• RoHS compliant 环保材质
Typical Applications 典型应用：
• Audio & visual equipment 音响视频设备
• Consumer electronics 消费类电子
• Telecom equipment 无信通信设备

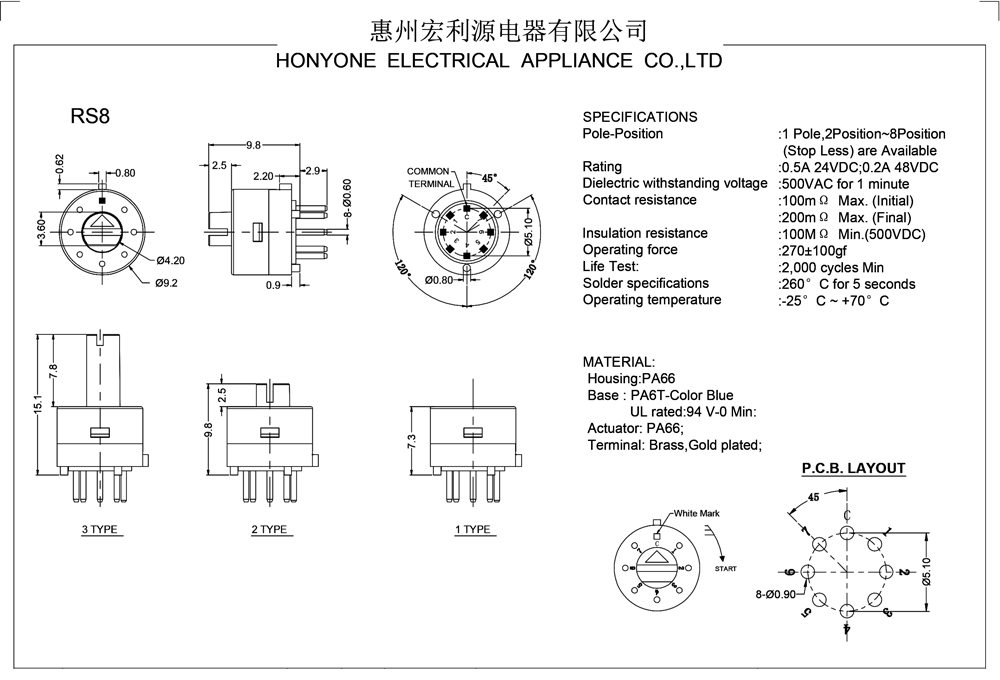

DRAWING

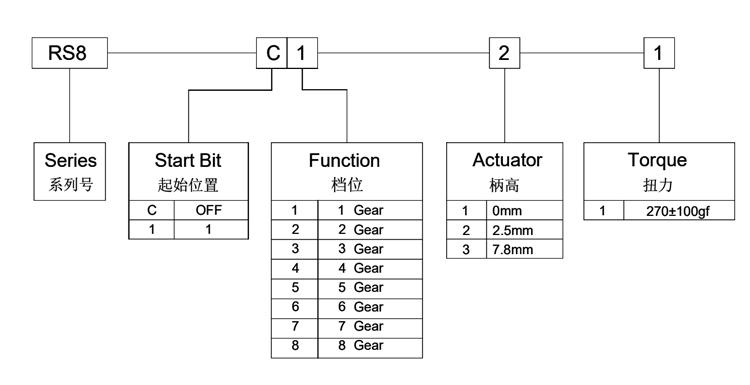

ORDER CODING DIAGRAM
