CLASSIFICATION
PRODUCT MODEL:S-03-20-12-C20
S-03-20-12-C20
PRODUCT SPECIFICATION:
Rating:16A/20A 250VAC
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
MATERIAL:
Base: PA66
Terminal:Brass,Tin plated
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 2000V1minute
MATERIAL:
Base: PA66
Terminal:Brass,Tin plated
Application：
Circuit overload Protection电路过载保护Automotive Electronics 汽车电子
Household appliances 家用电器
Beauty Equipment 美容器材
Medical equipment 医疗设备
Instruments and meters 仪器仪表

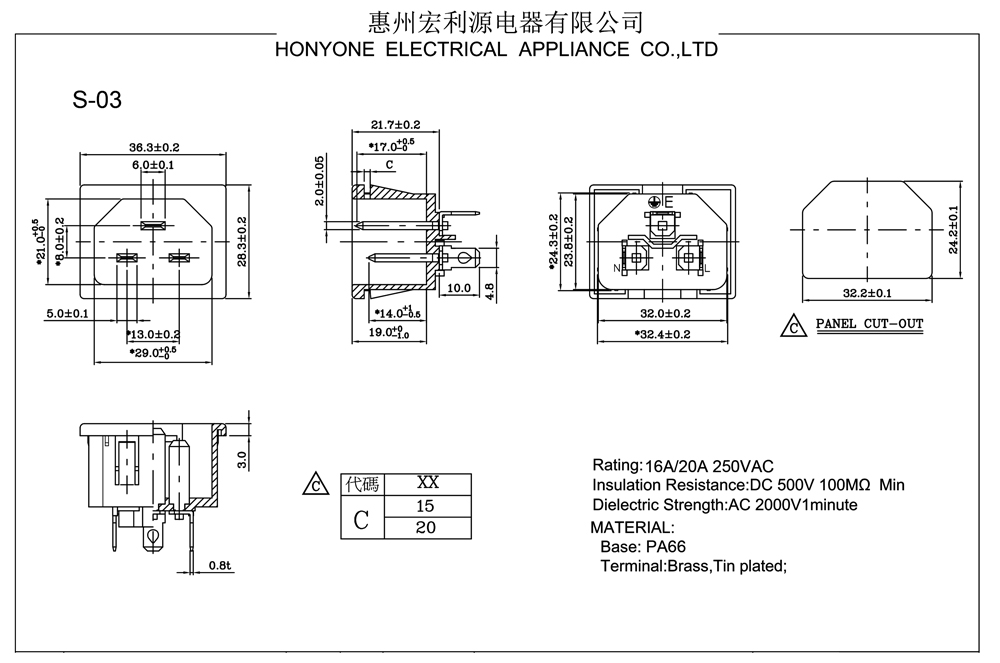

DRAWING
ORDER CODING DIAGRAM
