CLASSIFICATION
PRODUCT MODEL:PB26-13A-E-WU-RU-423
PB26-13A-E-WU-RU-423
PRODUCT SPECIFICATION:
Circuit :ON-OFF SPDT DPDT
Rating :0.4VA/28VAC
Dielectric voltage :500VAC for 1 minute
Contact Resistance :100mΩ Max .(intial)
Insulation Resistance :DC500V 100MΩMin
Operating Force :200±100gf
Total Travel :2.2±0.5mm
Opearating life :2,00,000 Cycles Min
Soldear Specifications :350°C for 5 Seconds
Openrating Temperature :-25°C~+70C
Rating :0.4VA/28VAC
Dielectric voltage :500VAC for 1 minute
Contact Resistance :100mΩ Max .(intial)
Insulation Resistance :DC500V 100MΩMin
Operating Force :200±100gf
Total Travel :2.2±0.5mm
Opearating life :2,00,000 Cycles Min
Soldear Specifications :350°C for 5 Seconds
Openrating Temperature :-25°C~+70C
Application：
Video processor 视频处理器
Security Monitoring Equipment
安防监控设备
Teaching recording and broadcasting equipment
教学录播设备
Consumer Electronics 消费类电子
Audio equipment 音响设备

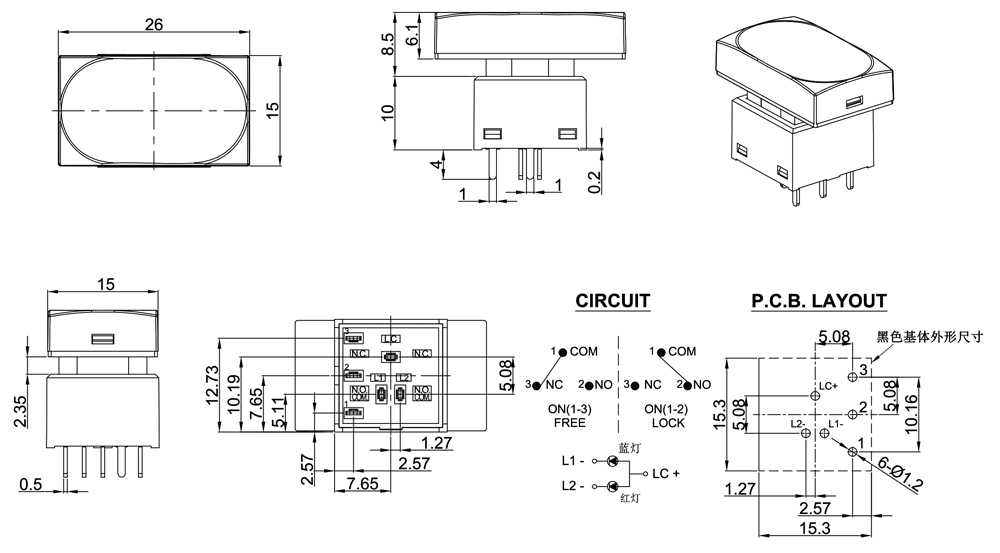

DRAWING
ORDER CODING DIAGRAM
