CLASSIFICATION
PRODUCT MODEL:PB66-E1-A-N-NR-2
PB66-E1-A-N-NR-2
PRODUCT SPECIFICATION:
Circuit :SPDT
Current rating :12mA
Voltage rating :24VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact resistance :50mΩ Max.(lnitial)
Insulation resistance :100MΩ Min.
Operating force :170±50gf
Total travel :2.0mm±0.4mm
Mechanical life :Over 50,000 cycles
Electrical life :Over 10,000 cycles
Function :Momentary
Operating temperature :-20°C~+70°C
Current rating :12mA
Voltage rating :24VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact resistance :50mΩ Max.(lnitial)
Insulation resistance :100MΩ Min.
Operating force :170±50gf
Total travel :2.0mm±0.4mm
Mechanical life :Over 50,000 cycles
Electrical life :Over 10,000 cycles
Function :Momentary
Operating temperature :-20°C~+70°C
Application：
Stage Lighting control equipment
舞台灯光控制设备
Video processor 视频处理器
Matrix Controller 矩阵控制器
Security equipment 安防设备
Cashier Equipment 收银设备

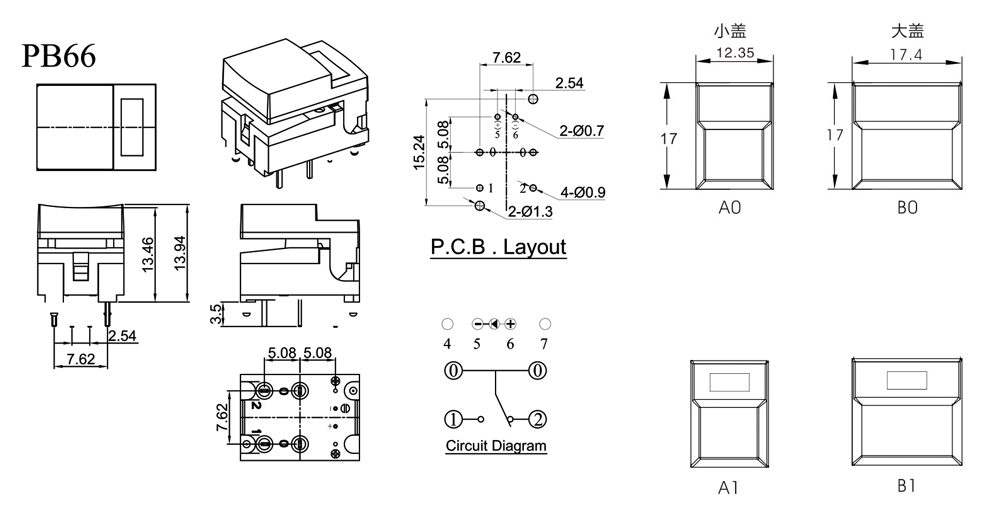

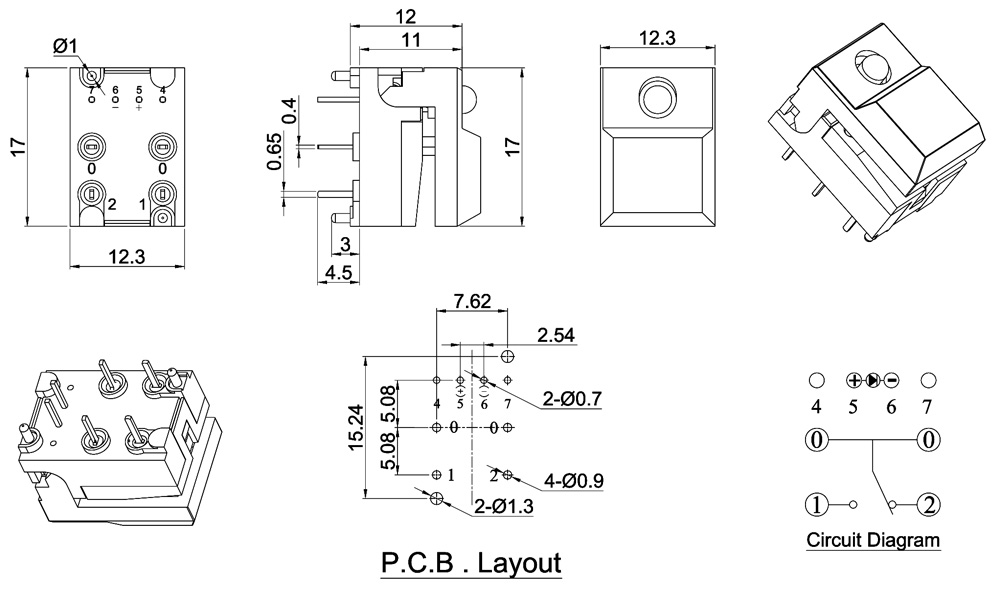

DRAWING

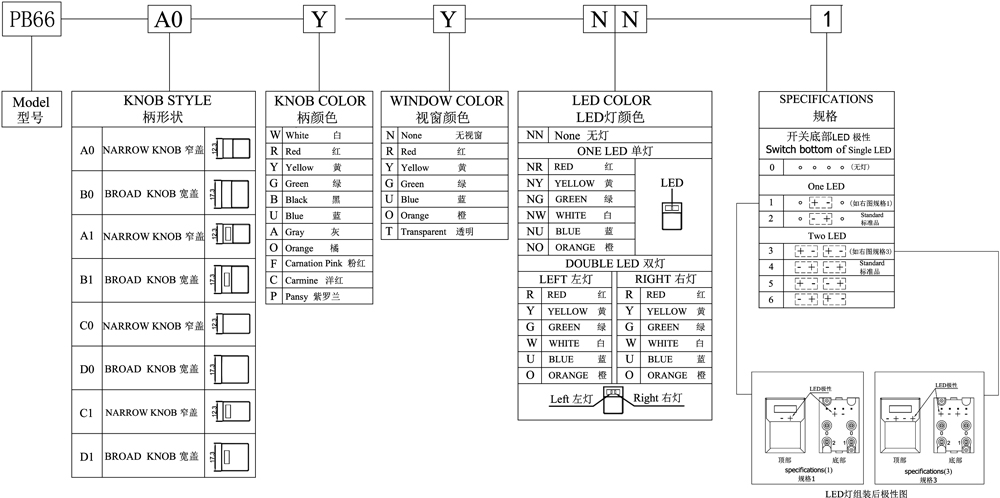

ORDER CODING DIAGRAM
