CLASSIFICATION
PRODUCT MODEL:PB12B-M-1B-NN
PB12B-M-1B-NN
PRODUCT SPECIFICATION:
Cycles:500,000 Actuations
OperatingTemperature:-40Cto+80°c
Shock: 10oG\’s/6 Milliseconds
Rating at 24VDC: 150 Milliamps
Voltage Breakdown: 1000VAC between mutually
insulated parts
Contact Resistance:25 milliohms max on newswitch
lnsulation: 1,000 megaohms minimum
OperatingTemperature:-40Cto+80°c
Shock: 10oG\’s/6 Milliseconds
Rating at 24VDC: 150 Milliamps
Voltage Breakdown: 1000VAC between mutually
insulated parts
Contact Resistance:25 milliohms max on newswitch
lnsulation: 1,000 megaohms minimum
Application：
APPLICATIONS
• Communications 通信设备
• Data entry 数据录入设备
• Hand-held control modules 人工控制手柄
• Outdoor controls 户外电子设备
• Mass transport controls 公共交通车辆控制
• Instrumentation 仪器仪表

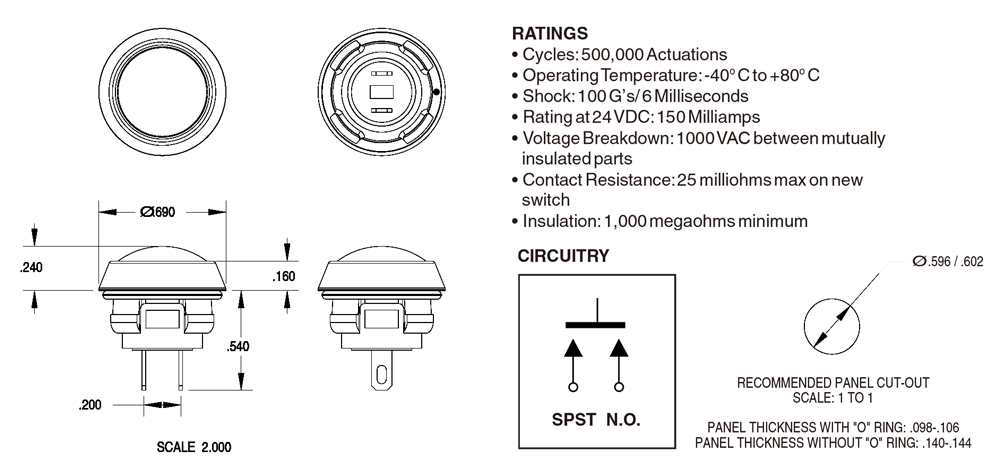

DRAWING
ORDER CODING DIAGRAM
