CLASSIFICATION
PRODUCT MODEL:PB09B-Z-210-F0N-BB
PB09B-Z-210-F0N-BB
PRODUCT SPECIFICATION:
Rating:10A 125V AC /6A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:DC500V 100mΩMin
withstand Voltage:1500VAC for 1 Minute
Operating Force:700±200gf
Travel:5.0±0.5mm
Life Cycle:10,000Cycles Min
Function:OFF-ON
Application：
Typical Applications 应用领域
• Telecom network equipment电信网络设备
• Automotive electronics自动化设备
• Consumer electronics 消费类电子
• Computer, server, modem,电脑，服务器
data storage 光猫，数据储存器
• Professional medical instrumentation,专业医疗设备

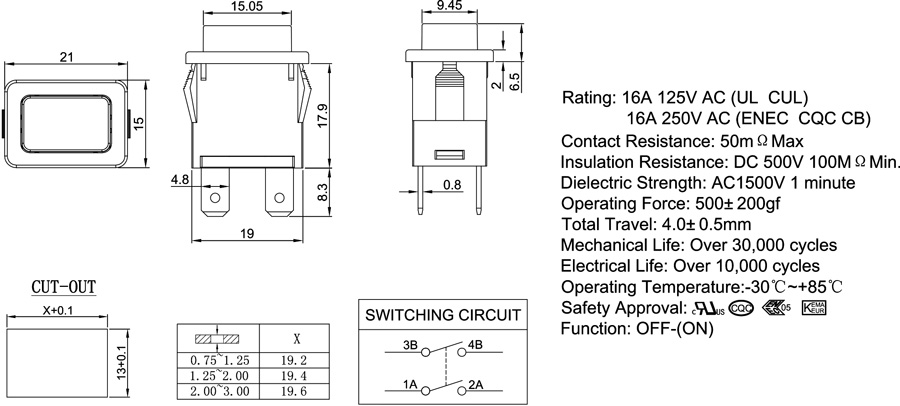

DRAWING
ORDER CODING DIAGRAM
