PRODUCT MODEL:PA12-11-DBB-NN Texture
PA12-11-DBB-NN Texture
PRODUCT SPECIFICATION:
Resistive: 28VDC 5A 4A(DB)25,000cycles
Resistive: 115VAC,60Hz 3A 1A(DB)25,000cycles
Inductive: 28VDC 2A 2A(DB)25,000cycles
Contact Resistance: 50mΩ Max.
lnsulation Resistance: 1GΩ @ 500DVc
Dielectric Strength:AC 1000V 1 minute
Mechanical Life:1,000,000cycles
Operating Temperation:-40°C~+85°c
Switch action: Momentray
Switch circuitry: SPDT-DB，load 1N.O./1N.C. 2 Circuit Life
Actuator Ingress Protection: IP67,IP68S,and lP69K(Front Panel).
Total traver: 1.6mm max.
Operating Force :1.7lbs [770g]. Release Force :12oz [340g]
Stands: UL61058 ROHS
Resistive: 115VAC,60Hz 3A 1A(DB)25,000cycles
Inductive: 28VDC 2A 2A(DB)25,000cycles
Contact Resistance: 50mΩ Max.
lnsulation Resistance: 1GΩ @ 500DVc
Dielectric Strength:AC 1000V 1 minute
Mechanical Life:1,000,000cycles
Operating Temperation:-40°C~+85°c
Switch action: Momentray
Switch circuitry: SPDT-DB，load 1N.O./1N.C. 2 Circuit Life
Actuator Ingress Protection: IP67,IP68S,and lP69K(Front Panel).
Total traver: 1.6mm max.
Operating Force :1.7lbs [770g]. Release Force :12oz [340g]
Stands: UL61058 ROHS
Application：
• Electronic handle 电控手柄
• Off-road transportation 户外交通运输
• Joysticks 操纵杆
• Typically used in cranes 起重机
• Construction equipment 建筑工程机械
• Agricultural equipment 农业设备
• Mining,equipment. 采矿设备
• Computers & network equipment 电脑周边设备
• Off-road transportation 户外交通运输
• Joysticks 操纵杆
• Typically used in cranes 起重机
• Construction equipment 建筑工程机械
• Agricultural equipment 农业设备
• Mining,equipment. 采矿设备
• Computers & network equipment 电脑周边设备
DRAWING

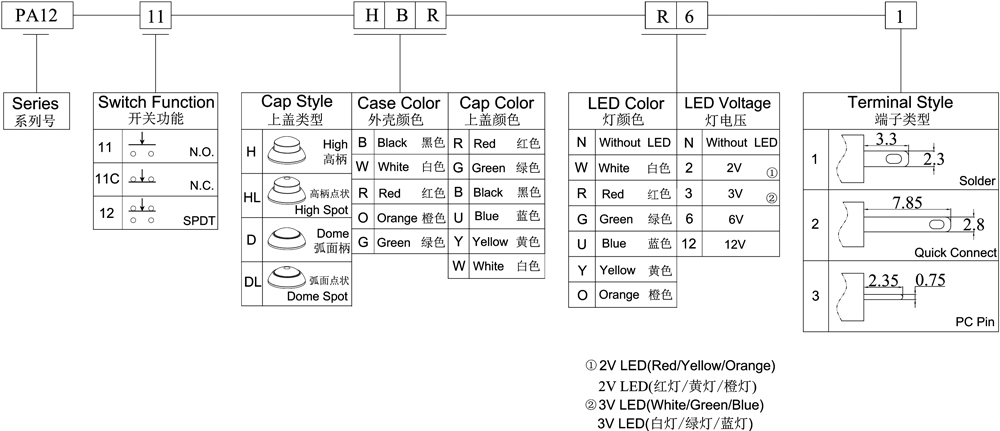

ORDER CODING DIAGRAM
