CLASSIFICATION
PRODUCT MODEL:KS12-PL1.5-BBR-5N-S
KS12-PL1.5-BBR-5N-S
PRODUCT SPECIFICATION:
Circuit:SPST
Current rating:10mA min./100mA max.
Voltage rating:2V DC min ./30V DC max.
Dielectric withstanding voltage:500VAC for 1 minute
Contact resistance:50mΩ Max. (Initial)
Insulation resistance:100MΩ Min.
Operating force:600±100gf
Tolal travel:1.5±0.4mm
Operating life::1,000,000 cycles Min
Bounce time::≤1ms
Operating speed 100 mm/s(3.94/s)
Solder specifications:260°C for 5 seconds
Operating temperature:-40°C~ + 85°C
Protection class: IP40
Current rating:10mA min./100mA max.
Voltage rating:2V DC min ./30V DC max.
Dielectric withstanding voltage:500VAC for 1 minute
Contact resistance:50mΩ Max. (Initial)
Insulation resistance:100MΩ Min.
Operating force:600±100gf
Tolal travel:1.5±0.4mm
Operating life::1,000,000 cycles Min
Bounce time::≤1ms
Operating speed 100 mm/s(3.94/s)
Solder specifications:260°C for 5 seconds
Operating temperature:-40°C~ + 85°C
Protection class: IP40
Application：
• Electronic handle 电控手柄
• Off-road transportation 户外交通运输
• Joysticks 操纵杆
• Typically used in cranes 起重机
• Construction equipment 建筑工程机械
• Agricultural equipment 农业设备
• Mining,equipment. 采矿设备
• Computers & network equipment
电脑周边设备

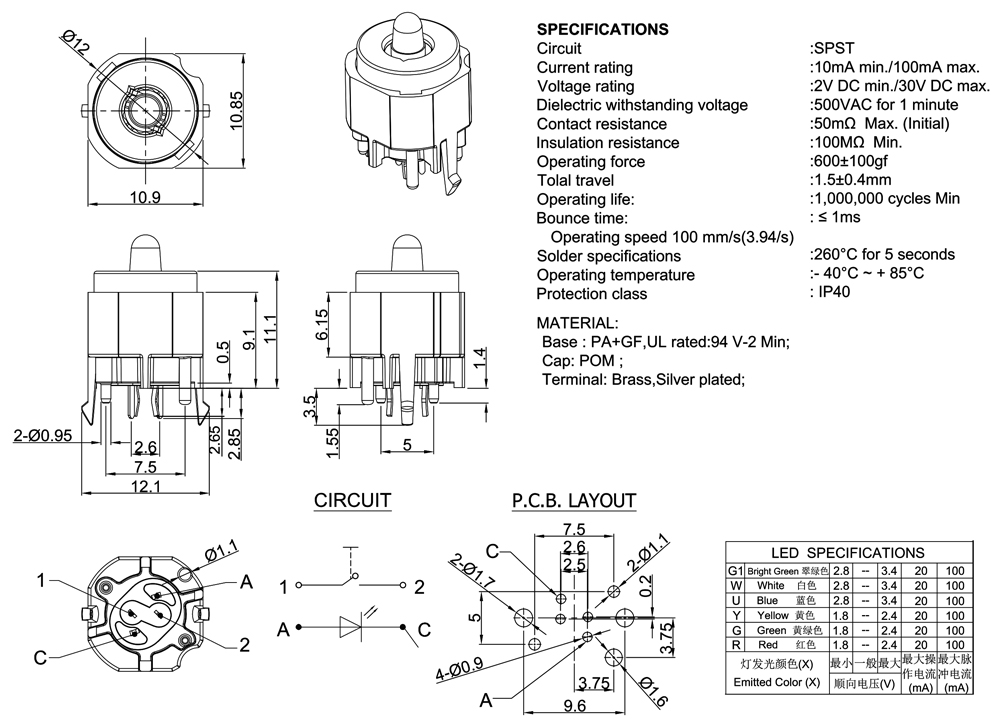

DRAWING

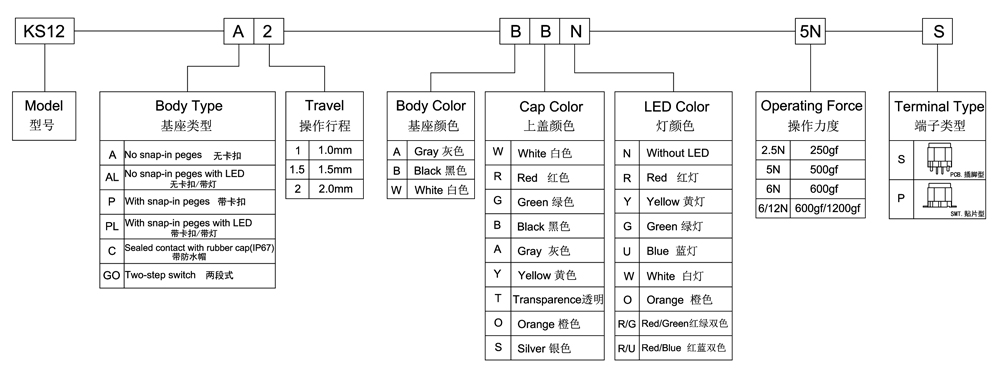

ORDER CODING DIAGRAM
