CLASSIFICATION
PRODUCT MODEL:PB23-2-1B-N-0
PB23-2-1B-N-0
PRODUCT SPECIFICATION:
Circuit: SPST、SPDT
RATING: 30mA / 28VDC
OPERATING SPEED: 10mm/sec
ELECTRIC LIFE: 20,000 cycles
FULL TRAVELS: 2.0mm±0.4mm
OPERATING TEMPERATURE: -25°C to 70°C
MATERIALS
PUSHER: POM Black
DUST PROTETION CAP: POM Black
CASE: PA Nature glass fiber reinforced
SPRING: Piano wire
CONTACT/TERMINALS: Brass, sliver plated
Application：
汽车 Automotive
工业遥控器,工业电子
industrial remote control, Industrial electronics
电脑网络设备
Computers network equipment
检测仪器/设备、电视系统
Test & Measurement equipment, TV system

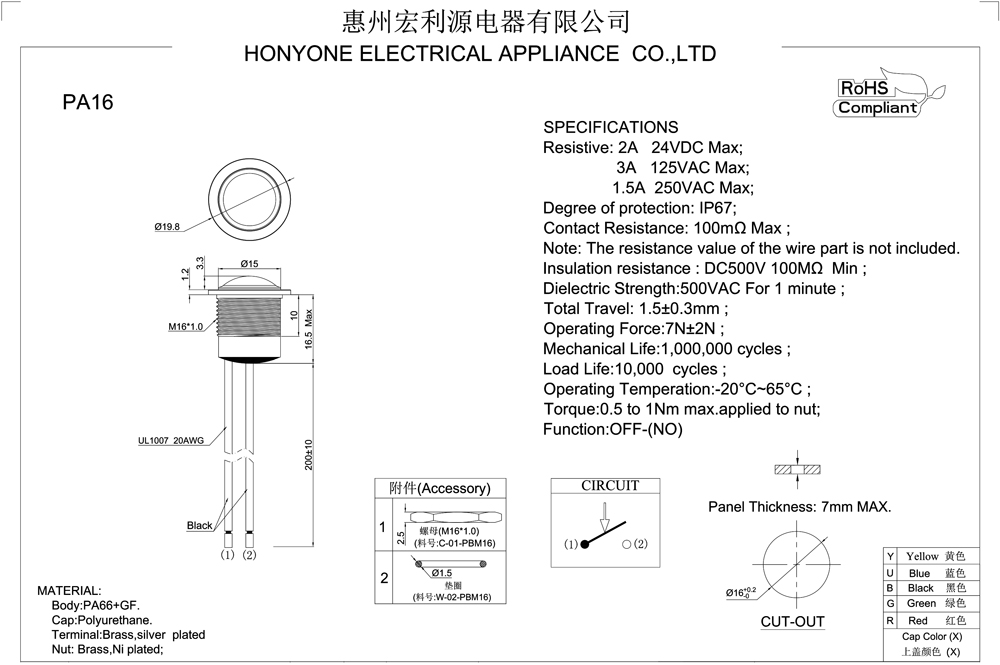

DRAWING

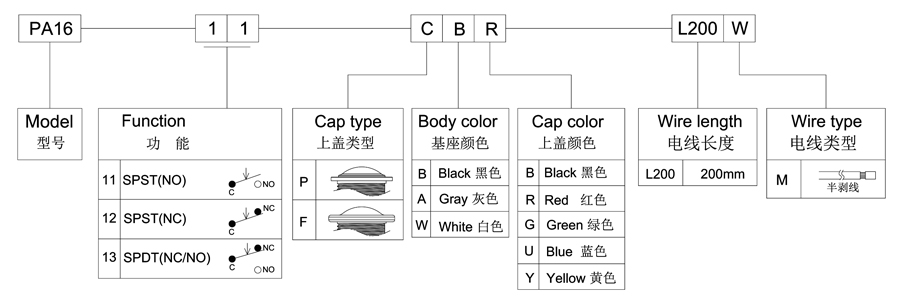

ORDER CODING DIAGRAM
