CLASSIFICATION
PRODUCT MODEL:PA16-12-PBR-L200M
PA16-12-PBR-L200M
PRODUCT SPECIFICATION:
Resistive: 2A 24VDC Max;3A 125VAC Max;
1.5A 250VAC Max;
Degree of protection: IP67;
Contact Resistance: 100mΩ Max;
Note: The resistance value of the wire part is not included.
Insulation resistance：DC500V 100MΩ Min；
Dielectric Strength:500VAC For 1 minute；
Total Travel: 1.5±0.3mm；
Operating Force:7N±2N；
Mechanical Life:1,000,000 cycles；
Load Life:10,000 cycles；
Operating Temperation:-20°C~65°C；
Torque:0.5 to 1Nm max.applied to nut;
Function:NC-(OFF)
1.5A 250VAC Max;
Degree of protection: IP67;
Contact Resistance: 100mΩ Max;
Note: The resistance value of the wire part is not included.
Insulation resistance：DC500V 100MΩ Min；
Dielectric Strength:500VAC For 1 minute；
Total Travel: 1.5±0.3mm；
Operating Force:7N±2N；
Mechanical Life:1,000,000 cycles；
Load Life:10,000 cycles；
Operating Temperation:-20°C~65°C；
Torque:0.5 to 1Nm max.applied to nut;
Function:NC-(OFF)
Application：
1.Designed for waterproof and dustproof applications,
suitable for harsh outdoor and underwater environments.
2.Supports high-power power supply, not limited to signal transmission only.3.Maximum rated working power: 500W

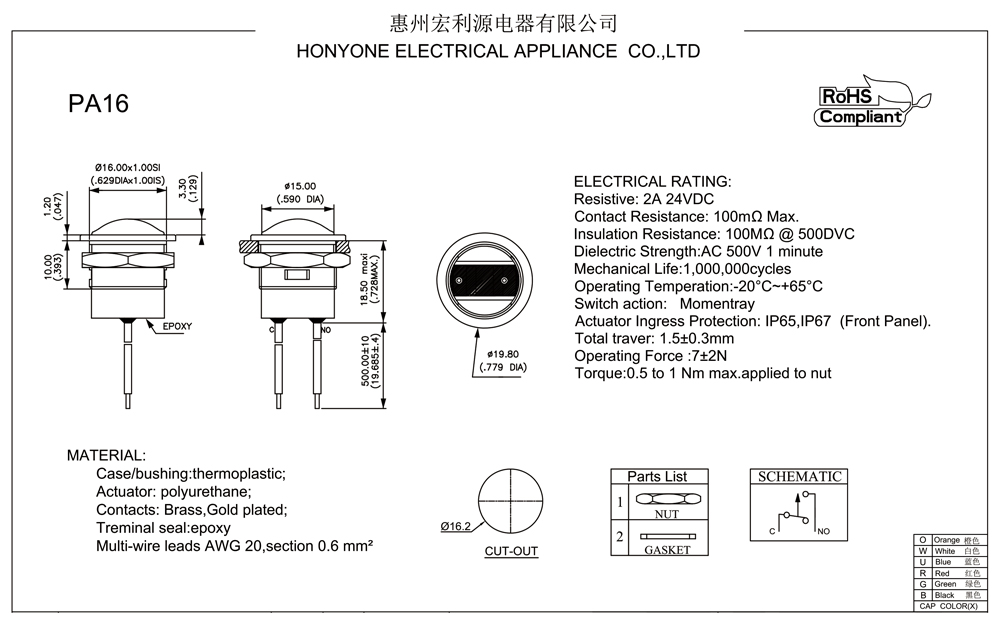

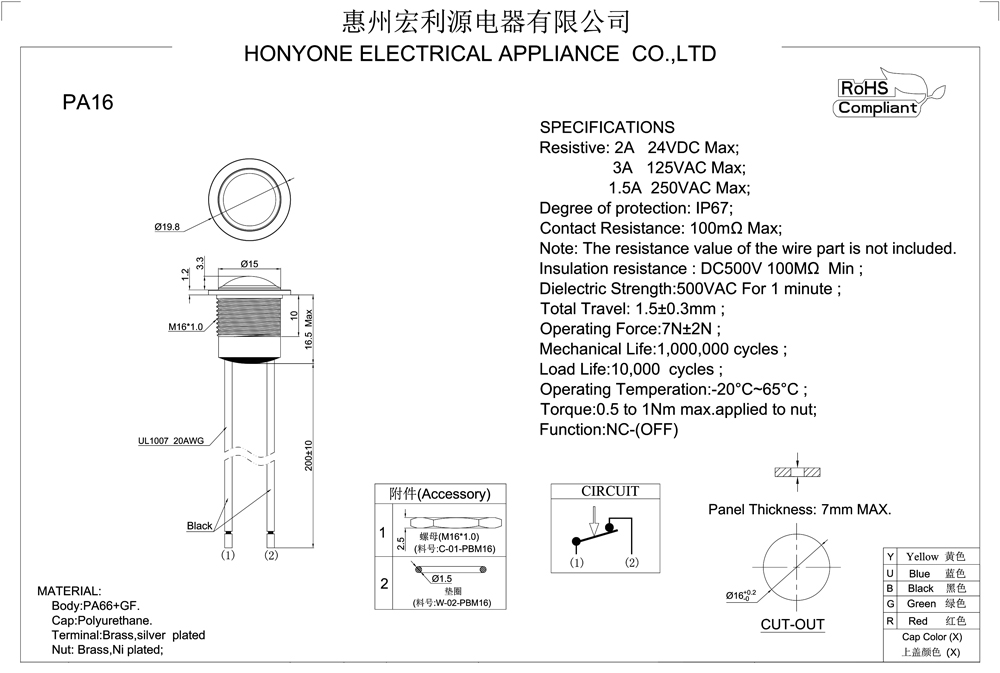

DRAWING

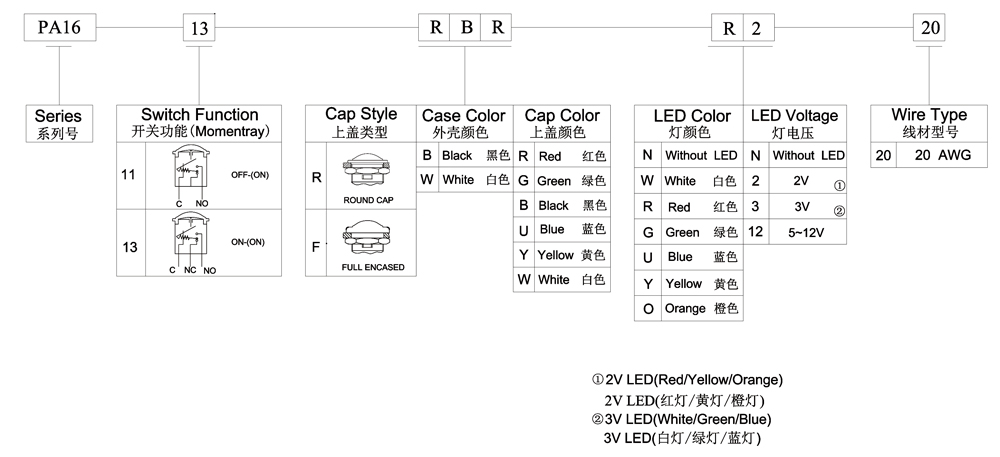

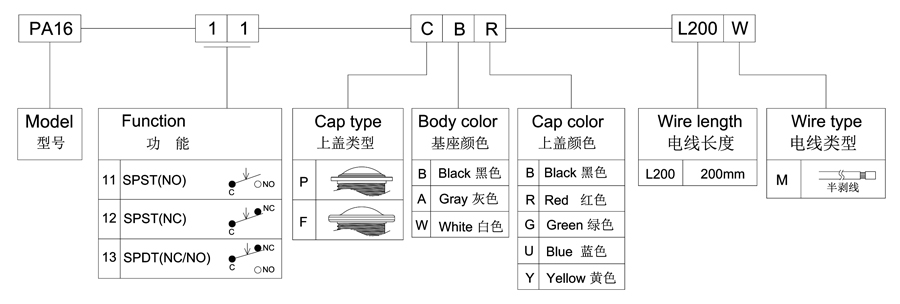

ORDER CODING DIAGRAM
