CLASSIFICATION
PRODUCT MODEL:PB07-AR-0N1
PB07-AR-0N1
PRODUCT SPECIFICATION:
Current Rating:100mA
Voltage Rating:30VDC
Dielectric withstanding voltage:250VAC for 1 minute
Contact Resistance:100mΩ Max .(intial)
Insulation Resistance:DC500V 100MΩ Min.
Operating Force:200±100gf
Total Travel:2.5±0.5mm
Opearating Force:200,000 Cycles Min
Soldear Specifications:256℃ for 5 Seconds
Openrating Temperature:-20℃~+70℃
Application：
Lighting Fixtures 照明灯具
Automated production 自动化生产
Instruments and meters 仪器仪表
Professional Audio 专业音响
Testing equipment 检测设备
Electrical toys 电动玩具
Testing equipment 检测设备
Electrical toys 电动玩具

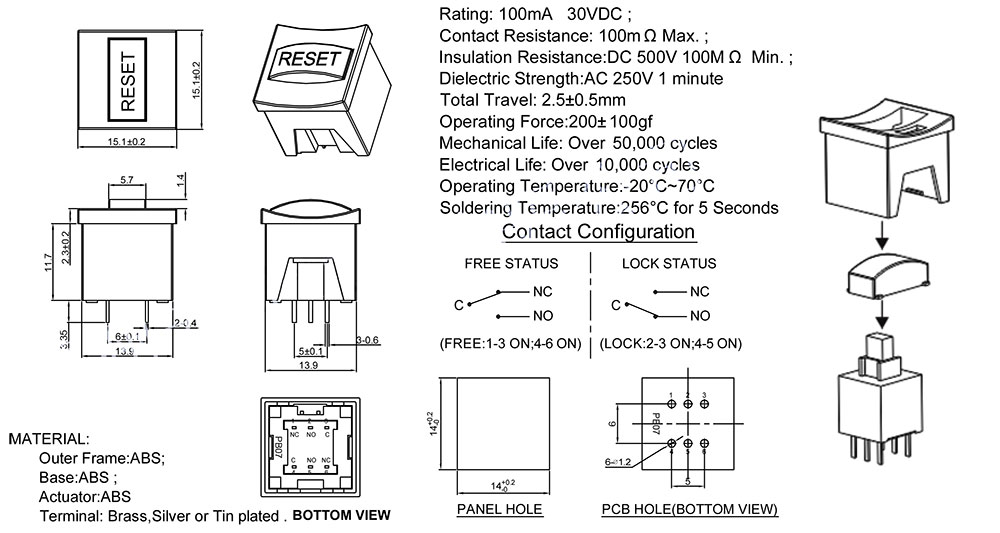

DRAWING
ORDER CODING DIAGRAM
