CLASSIFICATION
PRODUCT MODEL:PB202-21-2-Y
PB202-21-2-Y
PRODUCT SPECIFICATION:
Current Rating:1A-3A
Voltage Rating:30VDC
Contact Resistance:100mΩ Max
Insulation Resistance:100MΩ
Withstand Voltage:1000VAC for 1 Minute
Operating Force:700±200gf
Total Travel:1.5±0.3mm
Opearating Force:20,000 Cycles Min
Openrating Temperature:-20℃~+70℃
Application：
•The flashlight·手电筒
•Miner headlamp·矿工头灯
•Outdoor head lamp·户外头灯
•Electric rice cooker·电饭锅
•Electric kettle·电热水壶
•Household appliances·家用电器

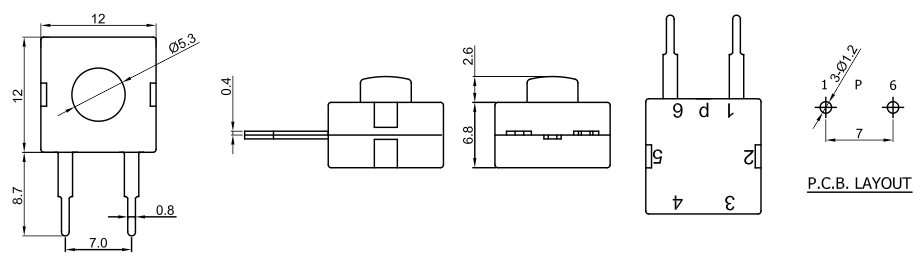

DRAWING
ORDER CODING DIAGRAM
