CLASSIFICATION
PRODUCT MODEL:PBM10-11M-T-S0
PBM10-11M-T-S0
PRODUCT SPECIFICATION:
Rating:1A 36VDC
1A 125VAC/0.5A 250VDC
Contact Resistance: 50m Ω Max.
Insulation Resistance:DC 500V 100M Ω Min.
Dielectric Strength:AC 1000V 1 minute
Total travel:2.0±0.5mm
Operating Force:400± 100gf
Electrial Life:10,000 cycles
Mechanical Life:20,000 cycles
Operating Temperation:-20° C~85° C
Function:OFF -(ON)
1A 125VAC/0.5A 250VDC
Contact Resistance: 50m Ω Max.
Insulation Resistance:DC 500V 100M Ω Min.
Dielectric Strength:AC 1000V 1 minute
Total travel:2.0±0.5mm
Operating Force:400± 100gf
Electrial Life:10,000 cycles
Mechanical Life:20,000 cycles
Operating Temperation:-20° C~85° C
Function:OFF -(ON)
Application：
电子门锁系统 Electronic lock system
酒店设备 Hotel equipment
通信医疗设备 Communication medical equipment
小家电 Small home appliance
航空航天船舶 Aerospace ship
汽车周边产品 Automobile peripheral products

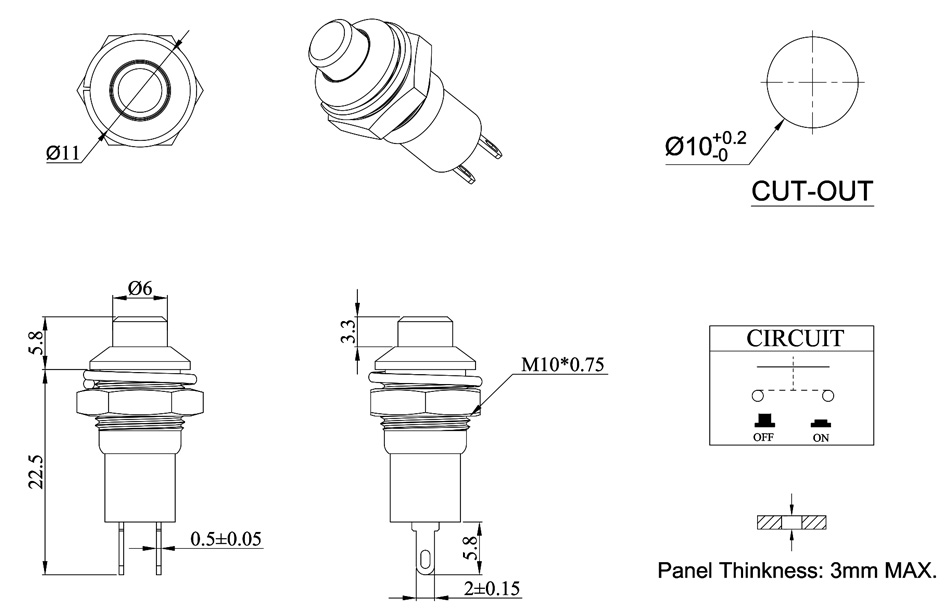

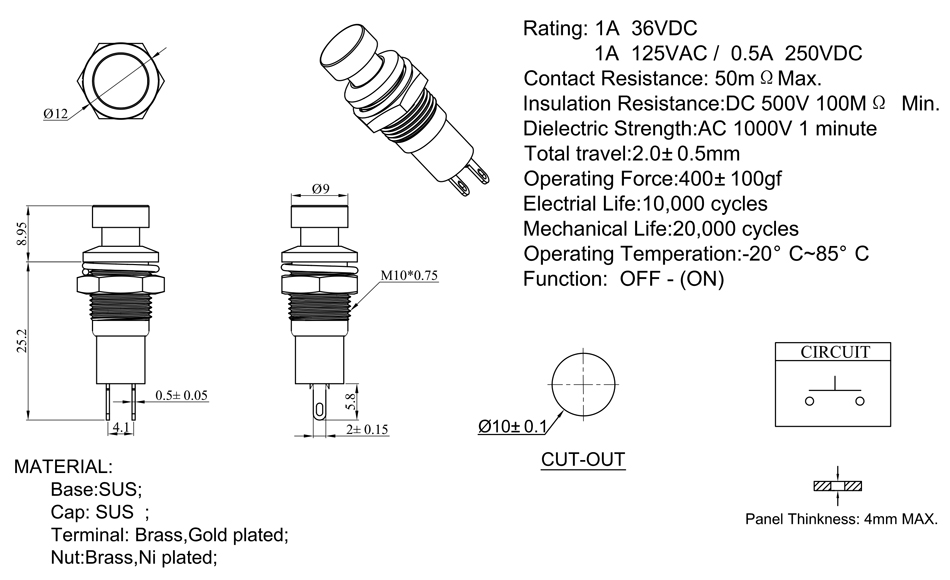

DRAWING

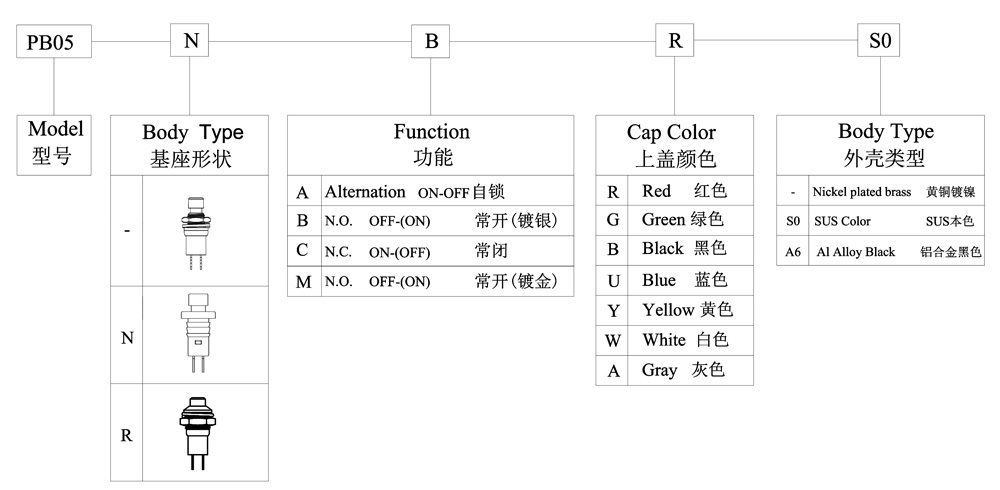

ORDER CODING DIAGRAM
