CLASSIFICATION
PRODUCT MODEL:TS86-M3-U
TS86-M3-U
PRODUCT SPECIFICATION:
Rating:50mA 12VDC
Insulation Resistance:1GΩ Min (at 250 VDC)
Dielectric Strength:AC 250V (50/60 Hz for 1 minute)
Contact Resistance:100mΩ Max. (Initial)
Electrically Life:10,0000 Cycles Min
Ambient Temperature:-40℃~+125℃
Operating Force:400± 100gf
Total Travel:0.8±0.1mm
Insulation Resistance:1GΩ Min (at 250 VDC)
Dielectric Strength:AC 250V (50/60 Hz for 1 minute)
Contact Resistance:100mΩ Max. (Initial)
Electrically Life:10,0000 Cycles Min
Ambient Temperature:-40℃~+125℃
Operating Force:400± 100gf
Total Travel:0.8±0.1mm
Application：
Audio / Visual 音响/视听设备Computer Peripherals 电脑外设
Consumer Electronics 消费类电子
Instrumentation 仪器仪表
Telecommunication 电信，通信设备
Medical Equipmen 医疗设备

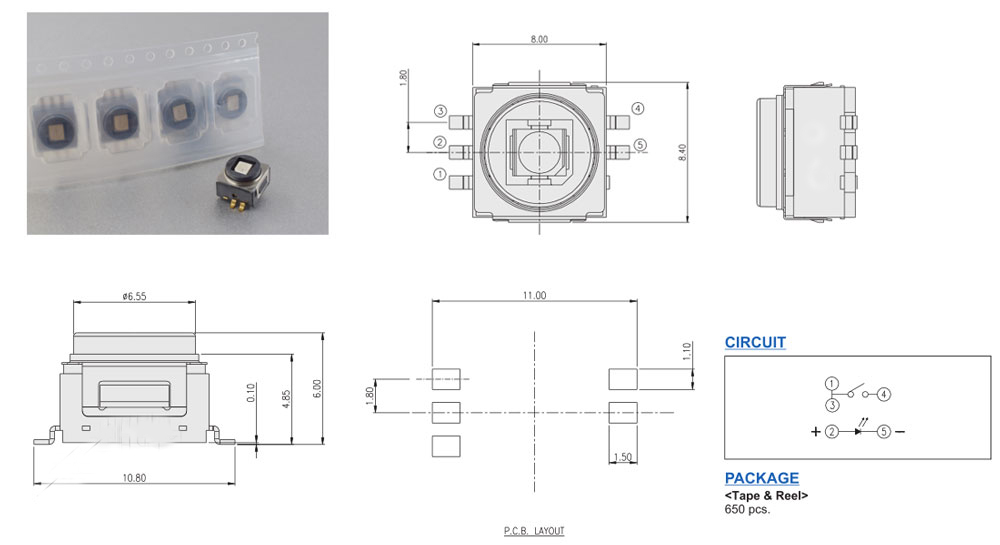

DRAWING
ORDER CODING DIAGRAM
