CLASSIFICATION
PRODUCT MODEL:PBM19-23M-F-DG3-S0
PBM19-23M-F-DG3-S0
PRODUCT SPECIFICATION:
Rating:Ith:5A Ui: 250VAC；
Resistive:3A 250VAC；2A 36VDC
Degree of protction:IP67;
Contact Resistance:50mΩ Max.；
Insulation Resistance:DC500V 100MΩ Min;
Dielectric Strength:1500VAC For 1 minute；
Total Travel: 3.0±0.5mm；
Operating Force:300±100gf；
Mechanical Life:200,000 cycles；
Load Life:50,000 cycles；
Operating Temperation:-25°C~70°C；
Function: OFF-(ON)
Resistive:3A 250VAC；2A 36VDC
Degree of protction:IP67;
Contact Resistance:50mΩ Max.；
Insulation Resistance:DC500V 100MΩ Min;
Dielectric Strength:1500VAC For 1 minute；
Total Travel: 3.0±0.5mm；
Operating Force:300±100gf；
Mechanical Life:200,000 cycles；
Load Life:50,000 cycles；
Operating Temperation:-25°C~70°C；
Function: OFF-(ON)
Application：
电子门锁系统 Electronic lock system
酒店设备 Hotel equipment
通信医疗设备 Communication medical equipment
小家电 Small home appliance
航空航天船舶 Aerospace ship
汽车周边产品 Automobile peripheral products

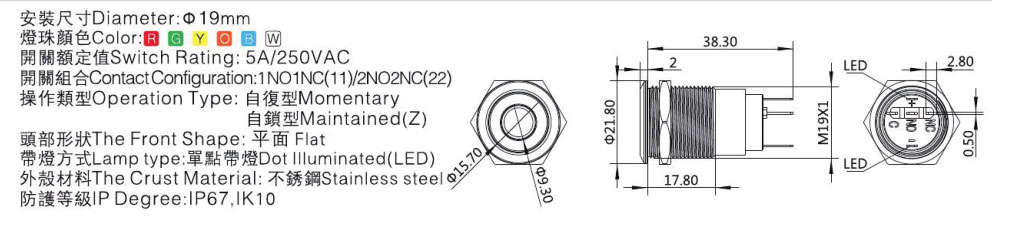

DRAWING
ORDER CODING DIAGRAM
