CLASSIFICATION
PRODUCT MODEL:PSM19-22Z-HS-NNN-SN-B
PSM19-22Z-HS-NNN-SN-B
PRODUCT SPECIFICATION:
Rating: 5A/10A/16A 125VAC ;5A/10A16A 250VAC ;
Contact Resistance: 50mΩ Max. ;
Insulation Resistance: DC 500V 100MΩ Min. ;
Dielectric Strength: AC 1500V 1 minute
Total Travel: 5.0±0.5mm
Operating Force: 750±200gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperation: -20°C~85°C
Protection type: IP40 (terminal side),
IP65 (Panel waterproof)
Mechanical collision protection type: IK07 .
Function: OFF-ON
Contact Resistance: 50mΩ Max. ;
Insulation Resistance: DC 500V 100MΩ Min. ;
Dielectric Strength: AC 1500V 1 minute
Total Travel: 5.0±0.5mm
Operating Force: 750±200gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperation: -20°C~85°C
Protection type: IP40 (terminal side),
IP65 (Panel waterproof)
Mechanical collision protection type: IK07 .
Function: OFF-ON
Application：
• Outdoor Controls ·户外控制
• Security Equipment ·安全设备
• Medical Equipment ·医疗设备
• Food Processing Equipment ·食品加工设备
• Military Equipment ·军用设备
• Industrial Machinery ·工业机械
• Transportation: Mass-Transit, Lift Trucks
·运输: 大众运输, 起重卡车

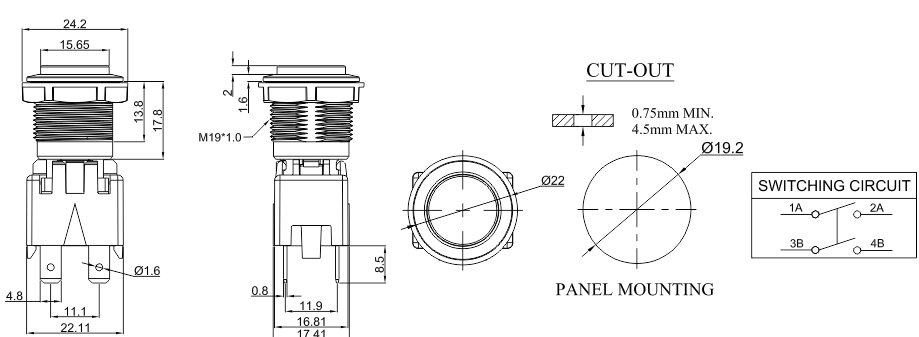

DRAWING
ORDER CODING DIAGRAM
