CLASSIFICATION
PRODUCT MODEL:SR-B-110-C5E-BG
SR-B-110-C5E-BG
PRODUCT SPECIFICATION:
Rating:6A 125VAC 3A 250VAC
Contact Resistance:50mΩ Max
Insulation Resistance:DC 500V 100MΩ Min
Dielectric Strength:AC 1500V 1 minute
Operating Force:250±100gf
Mechanical Life:50,000cycles
Load Life:10,000 Cycles
Operating Temperature:-20°C~85°C
Application：
Computer Peripherals 电脑外设
Telecommunications network 电信网络
TV Set-top box 电视机顶盒
Lamp Lighting 灯具照明
Consumer Electronics 消费类电子
Household appliances 家用电器
Car Rail Transportation 汽车轨道交通
Electronic toys 电子玩具
Power Tools Series 电动工具类
Industrial automation工业自动化

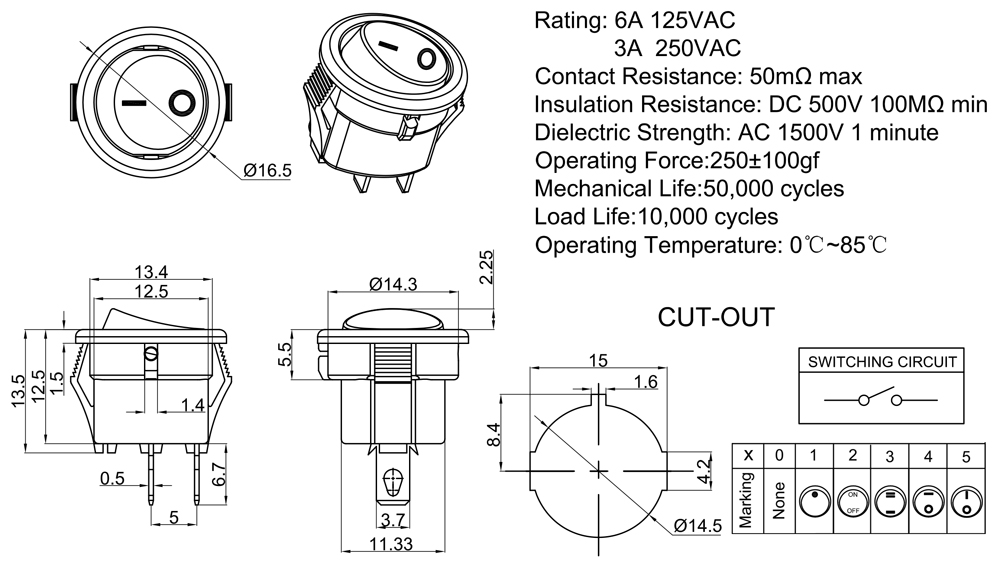

DRAWING

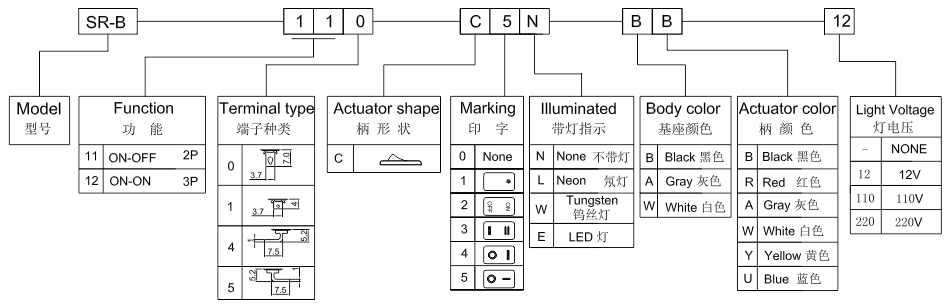

ORDER CODING DIAGRAM
